by navigator » Wed Jun 25, 2014 7:14 pm

I think I'm going to go out the front.
I'm tempted to go that route and replace my water pump while I am in there (115k) but I haven't had any issues yet.

My other thought is remove the front sway bar and remove the diff in 3 pieces (I think Jon A did it this way). I haven't had the front sway bar connected in months but I think about if plans change and I ever need one again...
"Please consider a search before posting. Folks on this site PIONEERED functional offroad use of these trucks."
The answer to many common lift questions can be found
here
My Build Thread
User avatar
navigator
Moderator

Posts: 4651
Joined: Wed Mar 09, 2011 10:16 am
Location: NC, Winnabow
Name: Chris
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Trail Ready

by Trail X » Wed Jun 25, 2014 10:59 pm

My swaybars are all removed, so thats a non-issue.

However, my diff is sealed nicely at this point, and I can't imagine re-applying the sealant while the halves are inside the small cavity in which it resides.

I understand the work involved with frontal removal, but don't fully comprehend the oil-pan removal process. The shop manual implies that it is as simple as just removing the oil pan bolts and the oil pan, but it seems like there could easily be something unforseen in the way like subframes and steering racks.
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by Moots1288 » Wed Jun 25, 2014 11:30 pm

The steering rack has to come down for the oil pan, and it'll be easier to work on the bolts on the diff with the rack down for the front. Even though I did do the removal through the front with the rack and cross brace up the 3rd time ;)
User avatar
Moots1288
Veteran

Posts: 1964
Joined: Fri Feb 24, 2012 8:42 pm
Location: Long island
Name: Moots
Vehicle Year: 2006
Vehicle: GMC Envoy
DriveTrain: 4WD
Rank: Offroad Rated

by Trail X » Thu Jun 26, 2014 12:12 am

Any specialty tools needed Moots?
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by Moots1288 » Thu Jun 26, 2014 12:24 am

Nope, pretty much 1 7/16th open end o big adjustable and 15mm socket and wrench 13mm wrench and 18mm wrench and sockets and a screwdriver yadda yadda not so bad
User avatar
Moots1288
Veteran

Posts: 1964
Joined: Fri Feb 24, 2012 8:42 pm
Location: Long island
Name: Moots
Vehicle Year: 2006
Vehicle: GMC Envoy
DriveTrain: 4WD
Rank: Offroad Rated

by DirtyBacon04 » Thu Jun 26, 2014 5:09 am

Trans-Continental Trailblazer - 5th Award
Current Count of Transmission Rebuilds: 5.5
***The more you know, the less you need.***
USMC '07-'12
Dirty Bacon's Build
User avatar
DirtyBacon04
Moderator

Posts: 3048
Joined: Fri Aug 05, 2011 4:59 am
Location: AK, Fairbanks
Name: Michael
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Rated

by TBYODA » Thu Jun 26, 2014 7:21 am

:thumleft:
2008 TB Radflo coil overs, Z71 rear springs, 2" spacer, skyjacker N8030 shocks, LT285/75R16E Goodyear MTR

My Build ----- MY Youtube Channel
User avatar
TBYODA
Moderator

Posts: 1762
Joined: Mon Apr 01, 2013 9:07 pm
Location: NY, Rochester
Name: Robert Sengillo
Vehicle Year: 2008
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Limited Slip
Rank: Offroad Rated

by anthonyl79 » Mon Jun 30, 2014 1:21 am

I would recommend taking it from the top. Quicker, easier and less expensive. No need to remove the oil pan and an alignment when you are done. It took me about 2 hours to have mine out the top. Remove disconnect battery, drain diff fluid, axles, remove front axle actuator, drain radiator, remove fan shroud and fan, remove t-stat housing, and alternator, unbolt front diff and remove. Easy Cheesey!
anthonyl79
Cruiser

Posts: 39
Joined: Thu Aug 23, 2012 12:09 pm
Location: Loveland, CO
Name: Tony
Vehicle Year: 2005
Vehicle: GMC Envoy
DriveTrain: 4WD

by Moots1288 » Mon Jun 30, 2014 7:36 am

You dont need to remove the t-stat housing or the battery
User avatar
Moots1288
Veteran

Posts: 1964
Joined: Fri Feb 24, 2012 8:42 pm
Location: Long island
Name: Moots
Vehicle Year: 2006
Vehicle: GMC Envoy
DriveTrain: 4WD
Rank: Offroad Rated

by Trail X » Mon Jun 30, 2014 7:56 am

Don't even need to drain the radiator, just disconnect the top hose to get the fan out. You also forgot to mention moving the A/C compressor and removing the idler pulley assembly.

I think this was all originally Regulator's idea, so kudos to him on this move.
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by v7guy » Mon Jun 30, 2014 9:45 am

Yeah, it seemed to have originated with Regulator. He used to tell people how easy it was, but I don't think we really had too many people even considering gear changes.
build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3712
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by Moots1288 » Mon Jun 30, 2014 11:52 am

I've mentioned what to move multiple times
User avatar
Moots1288
Veteran

Posts: 1964
Joined: Fri Feb 24, 2012 8:42 pm
Location: Long island
Name: Moots
Vehicle Year: 2006
Vehicle: GMC Envoy
DriveTrain: 4WD
Rank: Offroad Rated

by Moots1288 » Mon Jun 30, 2014 11:53 am

The lower house has to be removed inorder to pull the diff out.
User avatar
Moots1288
Veteran

Posts: 1964
Joined: Fri Feb 24, 2012 8:42 pm
Location: Long island
Name: Moots
Vehicle Year: 2006
Vehicle: GMC Envoy
DriveTrain: 4WD
Rank: Offroad Rated

by Trail X » Mon Jun 30, 2014 12:07 pm

I didn't have to remove the lower hose.

And I know you have gone over it before, thats what I was basing my post on, just making sure it was clear. The only difference is that I didn't remove the hose.

I did find that you have to remove the bolt at the driver side of the A/C line that runs over the engine in order to get the compressor up above the hole you're making.
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by Wahugg » Mon Jun 30, 2014 12:26 pm

James,

How long did it take you to pull the diff, how long overall for the swap?

-Wahugg
Wahugg
Addict

Posts: 576
Joined: Fri Oct 07, 2011 10:09 am
Name: Wahugg
Vehicle Year: Other
Vehicle: Other Vehicle
DriveTrain: AWD w/ G80

by Moots1288 » Mon Jun 30, 2014 12:35 pm

Where it bolts to the lift bracket?
And you didn't remove it off the tstat?
User avatar
Moots1288
Veteran

Posts: 1964
Joined: Fri Feb 24, 2012 8:42 pm
Location: Long island
Name: Moots
Vehicle Year: 2006
Vehicle: GMC Envoy
DriveTrain: 4WD
Rank: Offroad Rated

by Trail X » Mon Jun 30, 2014 12:42 pm

Yeah, I had to remove that bolt in order to gain enough movement of the A/C line.

I didn't touch the lower hose or the tstat housing. I only had to refill about 2 qts of dexcool that was lost by removing the upper radiator hose.

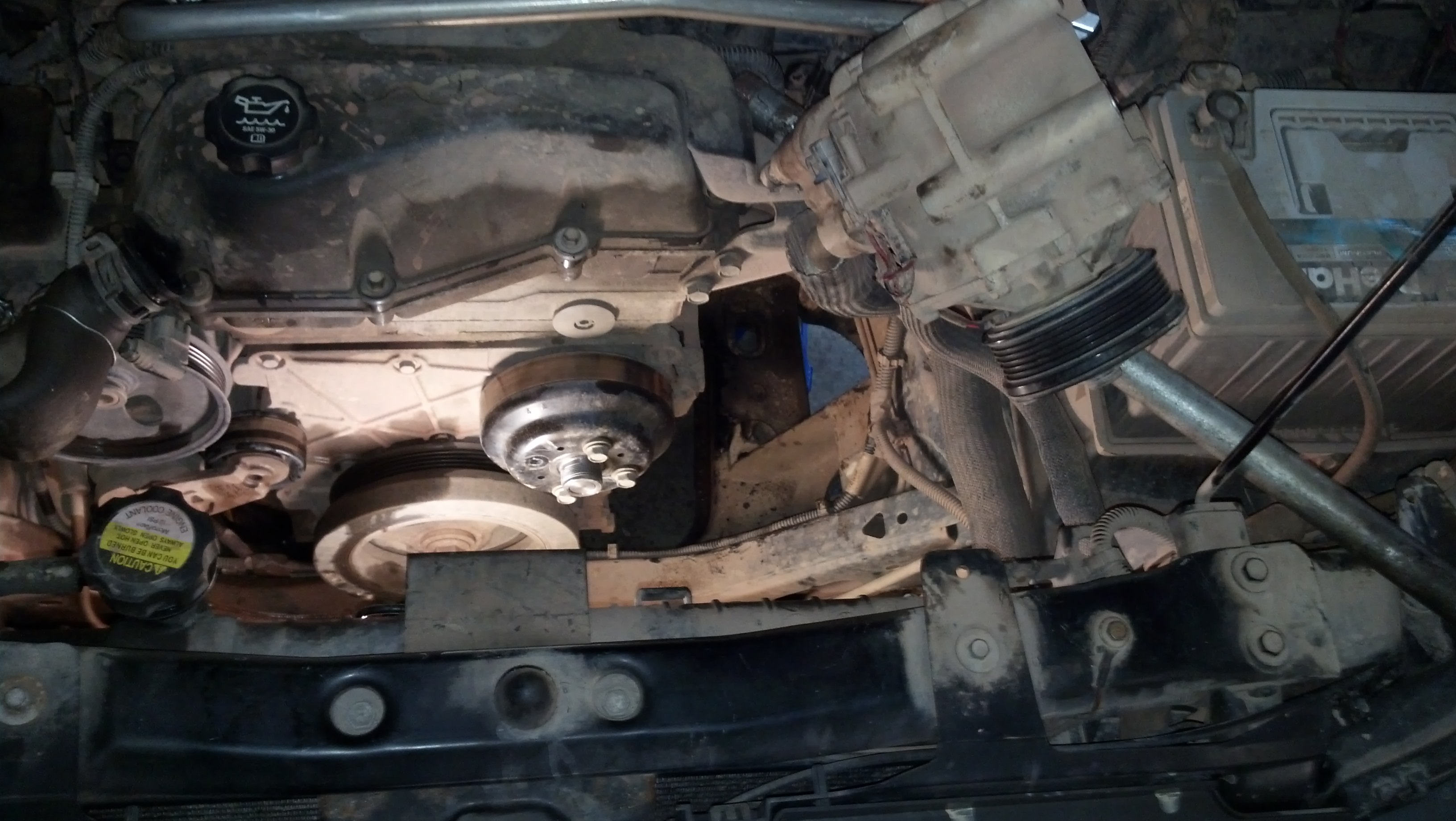

You'll see in the picture below, I have a piece of pipe holding up the A/C compressor.

Also, a tip for others, I bolted a chain to the top front diff bolt in order to make it easier to pull it up and out.
Attachments
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9935
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by Moots1288 » Mon Jun 30, 2014 12:45 pm

I.didnt use a chain, and I could not fit my hand in there to pull up the diff, good time to flush and put new hoses anyways. I actually grabbed it with one hand and pulled it up, could see a chain working easier.
User avatar
Moots1288
Veteran

Posts: 1964
Joined: Fri Feb 24, 2012 8:42 pm
Location: Long island
Name: Moots
Vehicle Year: 2006
Vehicle: GMC Envoy
DriveTrain: 4WD
Rank: Offroad Rated

by Regulator1175 » Mon Jun 30, 2014 1:06 pm

Wow, It is almost like I knew what I was talking about when I wrote up a how to on this a year ago!

I see a lot of talk about dropping the oil pan and am curious if anyone actually has? I did last week and it is by far one of the hardest parts I have had to remove. It took the need of an engine hoist and lifting the motor about a foot off the mounts. IT SUCKS!!!!
Twenty years from now you will be more disappointed by the things that you didn’t do than by the ones you did do.
So throw off the bowlines. Sail away from the safe harbor. Catch the trade winds in your sails. Explore. Dream. Discover.
- Mark Twain
--Build--
User avatar
Regulator1175
Veteran

Posts: 1048
Joined: Wed Mar 17, 2010 3:48 pm
Location: IN, Warsaw
Name: Matthew McClelland
Vehicle Year: 2002
Vehicle: GMC Envoy
DriveTrain: 4WD w/ G80
Rank: Extreme Offroader

by Gordinho80 » Mon Jun 30, 2014 1:17 pm

When I swapped my front diff, I dropped the oil pan. I had to drop the steering rack and cross member, so that was a pain in the ass. Probably would have been easier taking the fan and the shroud off and going from the top, but once I started, I had to finish it.
Mario - Build Thread
User avatar
Gordinho80
Lifer

Posts: 2787
Joined: Tue Sep 08, 2009 9:27 am
Location: NJ, Jackson
Name: Mario Almeida
Vehicle Year: Other
Vehicle: Other Vehicle
DriveTrain: 4WD

PreviousNext

Return to Differentials / Axles
