2006 Chevy Trailblazer

Drivetrain Specs:
4.2 I6
8.6 rear swap out of an 08 TB
Precision gear 4.56 rear R&P

Suspension Modifications:
Front:
Liftmeister 3" spacers
Poly bushings
Rancho Struts
Stock spings
Rear:
Z71 springs
Liftmeister 2.5 spacers
Massive Specs upper and lower control arms
Massive specs panhard bar

Exterior Modifications:
Liftmeister 3" body lift
Liftmeister 1.5 adapters
Procomp 17 wheels
General Grabbers 35/12.5R17
Ft Fenders trimed- need to trim a little more still rub

Engine Modifications: None

Interior Modifications: None

Recovery Equipment: Strap, cables, standard lockout kit, and Big Jim

Electrical Modifications: 8 hide away strobes, Priority green, Red LED dash light, and Powercall siren... hahaha
Attachments
Current pic

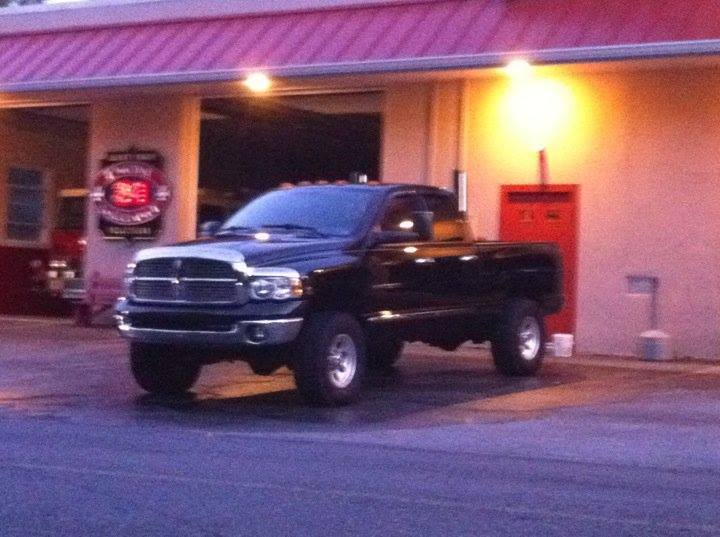

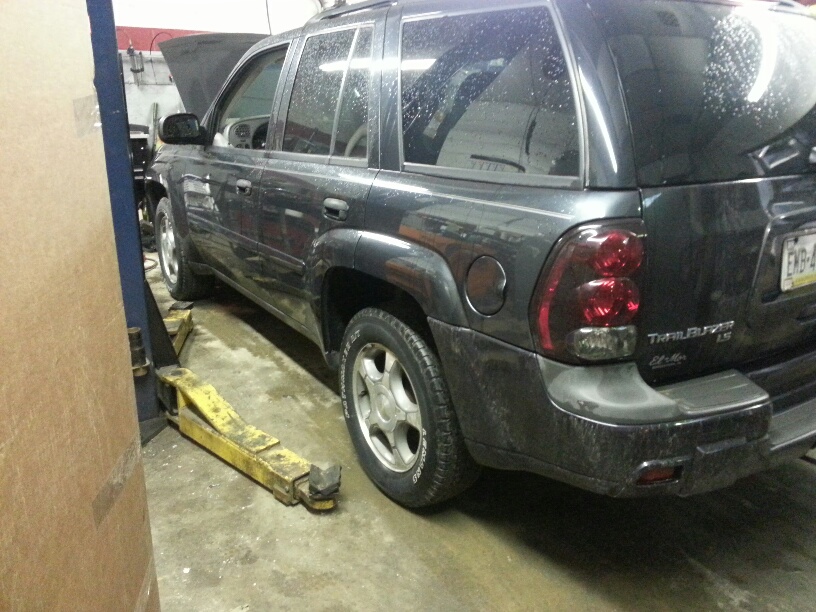

My most recent picture and why I decided to do some upgrades. Long day at work driving to my girl friends house, I started down a slight grade into her neighborhood at 5mph. By the time I got to the bottom (a T intersection) I was doing 25 and had 3 choices a parked car, a house, or a curb with a knee wall. So I picked the curb and spent the the hour pulling my tb off a wall and changing my flat in the snow. Luckily the week prior I had the spare down to change the vent purge valve, so I didnt have to deal with the spare being stuck while in the snow. So me being the type of person I am, you cant replace stock parts with stock parts. So I have spent the last 2 months researching different things on here and other sites and my journey has begun.
Last edited by exb5182 on Wed Apr 09, 2014 12:20 pm, edited 2 times in total.
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Thu Mar 13, 2014 8:53 pm

So it all originally starts with me owning what was always my dream truck, then being young and dumb and trading that in on a Mercedes C class. While I owned that car, my dad passed away and I became a trailblazer owner (his of course which makes it a little more special). So a year after going to back to school I was tired of looking at a car I was paying insurance and a car payment of just sit in my drive way (benz). So I decided to sell it and just have my tb. So I did and besides the occasional problems I have been pretty happy with it.
Attachments
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Thu Mar 13, 2014 9:10 pm

My Benz and Trailblazer before my little accident
Attachments
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Thu Mar 13, 2014 9:22 pm

The first of the parts have arrived tomorrow Ill be getting my wheels, It will be a few weeks until my body lift comes in and I have time to install it so they will pretty much only be paper weights for a while. I am hoping to get my springs, shocks, struts, and suspension lift tomorrow as well so I can get busy this weekend. Also I currently have a 8" rear with 3.42 gears, so this saturday I am taking a little trip to Jersey; hopefully I will come home with an 8.6 with an open carrier! Oh also I have new upper and lower ball joints for both sides but i got them late in the day and left them sitting on my tool box, so until I install them I really didnt think a pic of them was needed.
Attachments

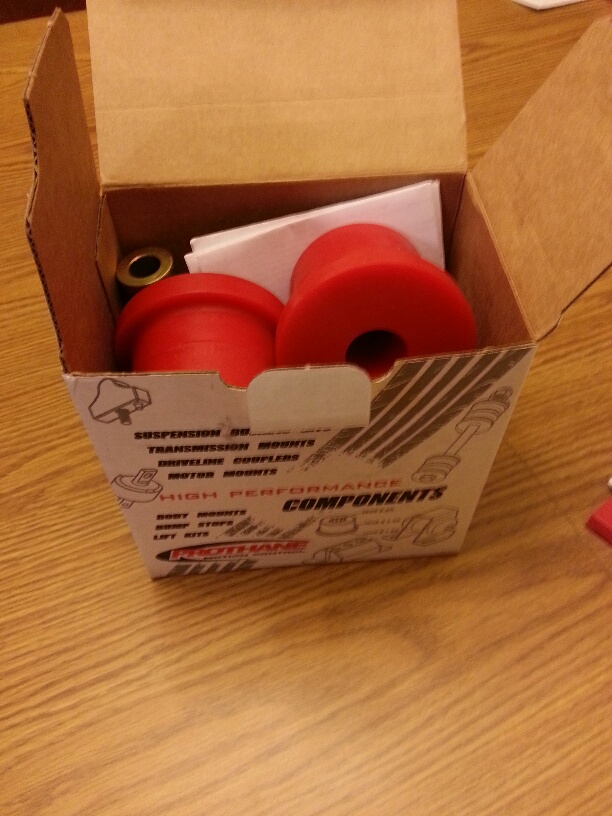

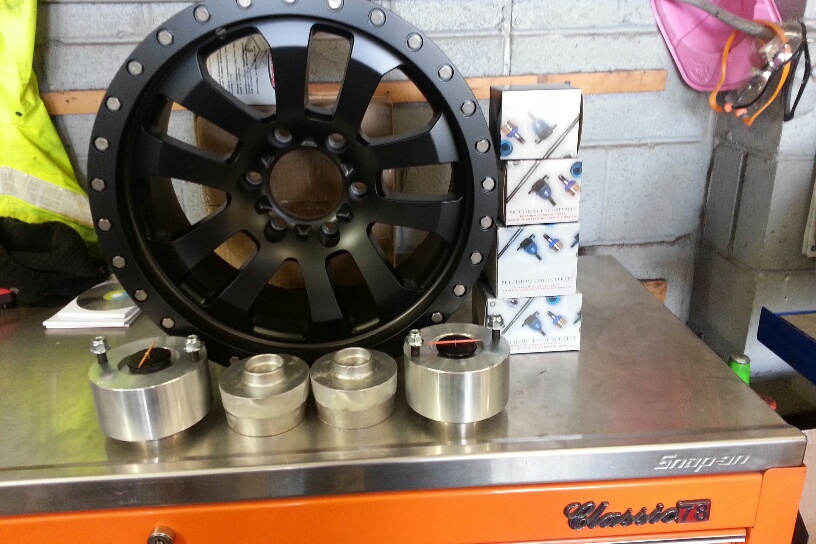

Prothane front control arm bushings
Massive Speeds rear upper and lower control arms, Markmc 1.5 wheel adapters
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Sat Mar 15, 2014 10:45 pm

My emergency lights install job
Attachments

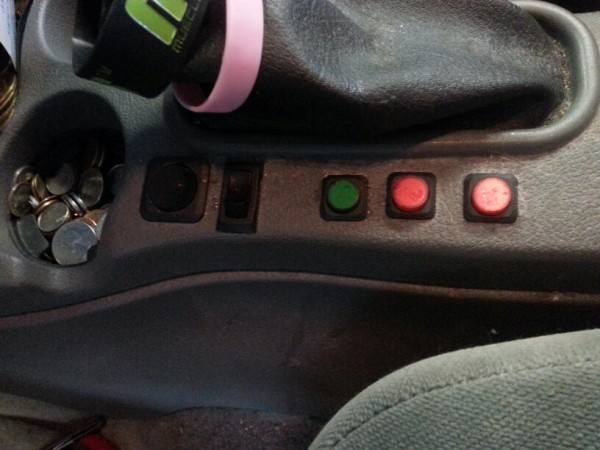

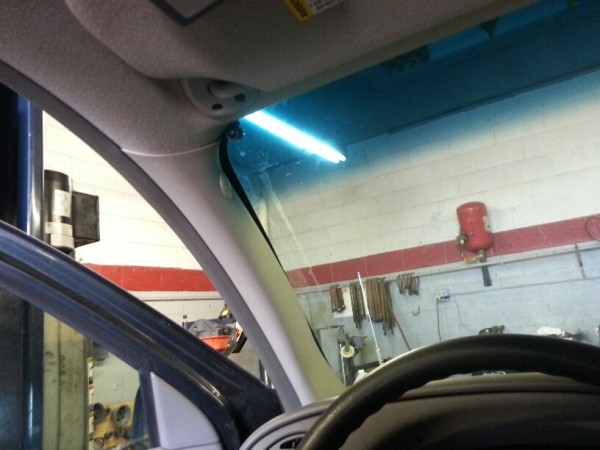

I have my switches for my lights mounted next to my shifter for easy access. One toggle for siren, one for my priority green, The green push button is for white strobes, the two red buttons work the red strobes and led dash light. All switched are wired to relays mounted in the back

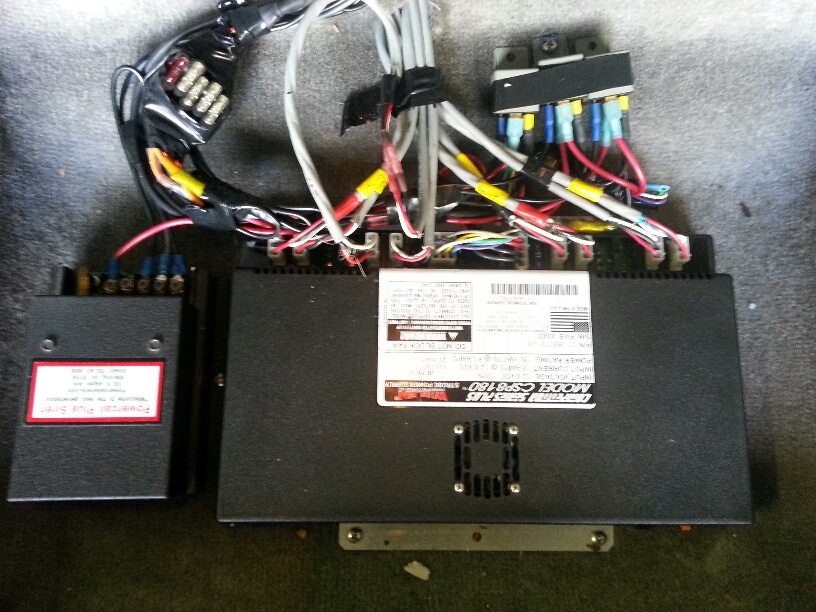

Here is some electrical stuff I already have previously installed Strobe Pack and remote siren pack
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Sat Mar 15, 2014 10:50 pm

Some more parts arrived on Friday. Here are the wheels I went with (Procomp), My spacers from Markmc, and the ball joints made it in a picture as well.
Attachments
Parts Yayyyyy
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Sat Mar 15, 2014 10:56 pm

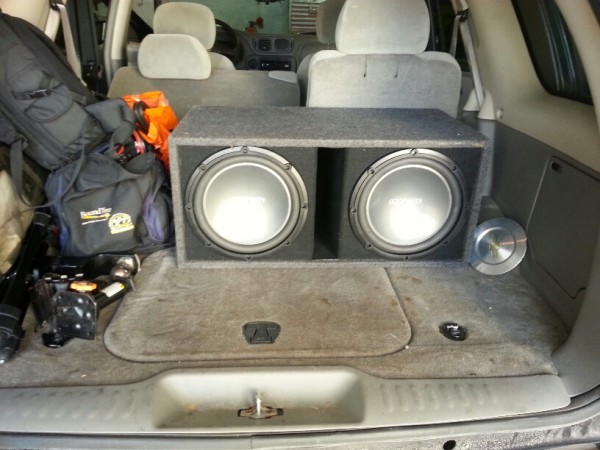

Radio Up grade. I got a free amp and 2 12s from my ex (this week next week will probably be different). She swears they worked perfect when she took them out of her car a year ago. I guess amps over heat in closets hahahaha
Attachments

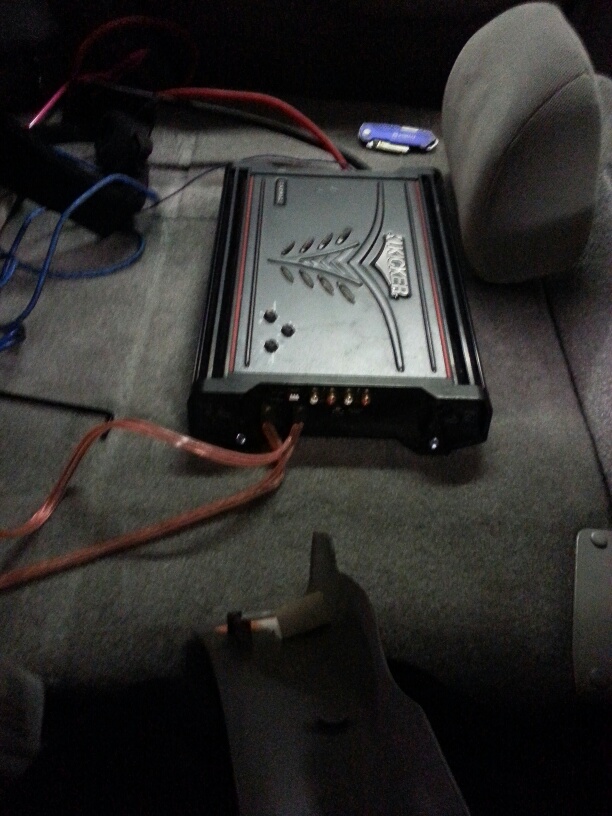

amp during install, I never got to finalize and clean my wiring up so dont judge.
upside down because by the time I got to this point I just didnt care bc Ill have to move them again
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Sat Mar 15, 2014 11:00 pm

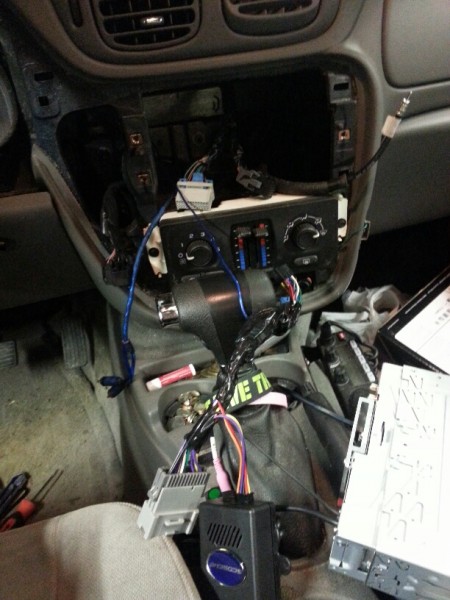

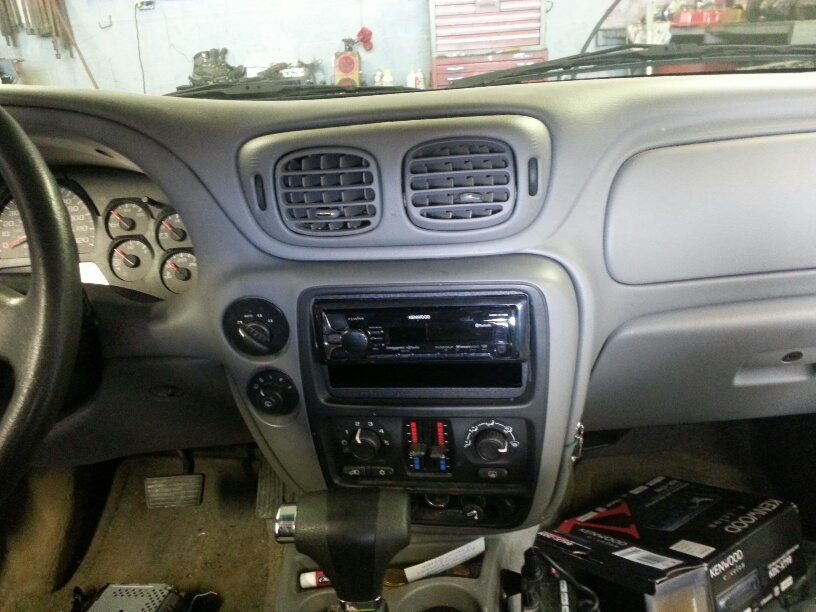

Bought a new head unit and had some fun installing
Attachments

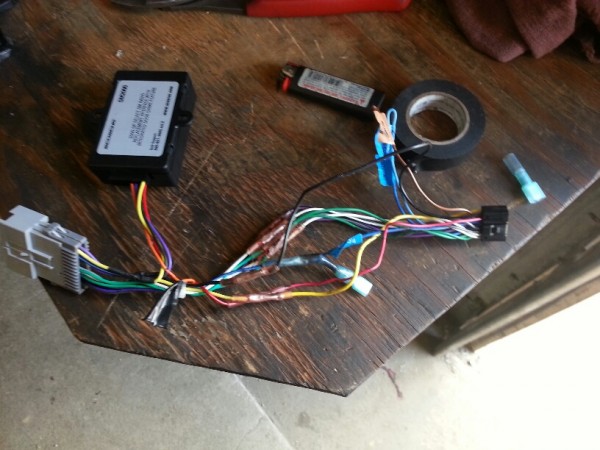

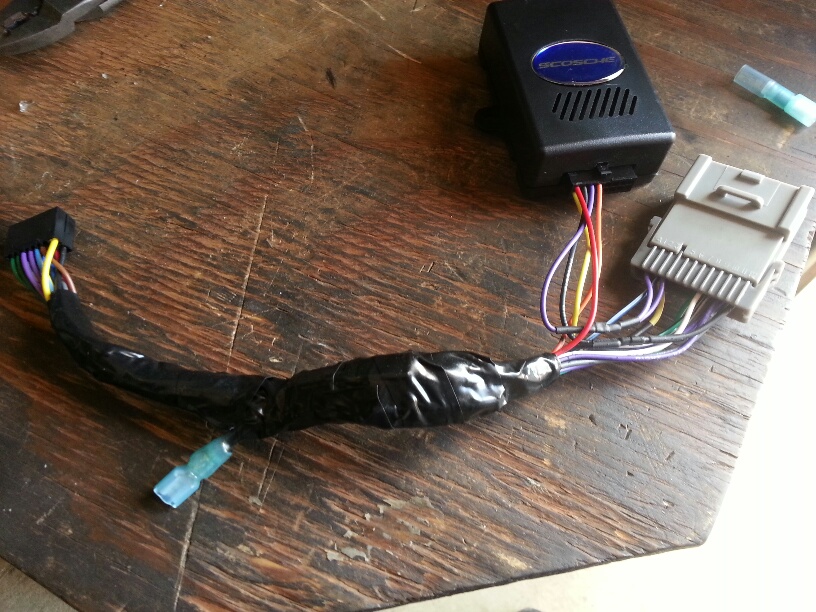

interface kit wiring. I use heat shrink butt connectors on everything. Keep the moisture out keep the current flowing.
Interface kit all cleaned up. I used a spade connector for the amp remote wire to make removal of harness easy.
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Sat Mar 15, 2014 11:03 pm

Its nice working in a shop and having the right tools. More of my radio install.
Attachments

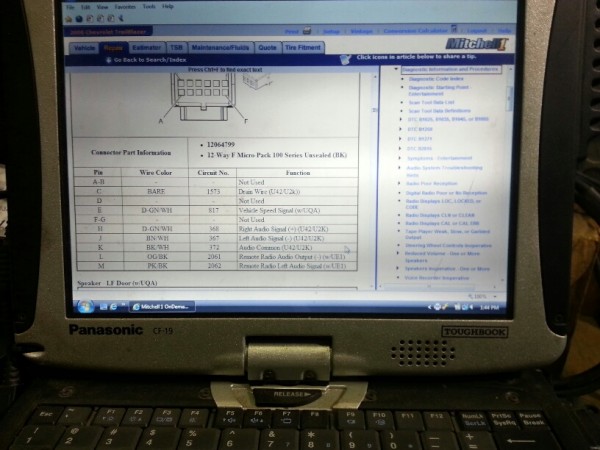

I actually hate this program because I am used to the alldata platform but ondemand does have all the info just takes a while to find.
where'd that hole come from?
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Sat Mar 15, 2014 11:06 pm

Finished product... I had to grind the bezel slightly due to the rounded edges and the head unit not sitting properly. With only having 3 hrs of sleep and driving all day I was kinda in a rush and always slack on the finishing quality I do on my own stuff.
Attachments
headunit installed
bluetooth mic
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Sat Mar 15, 2014 11:27 pm

So the reason I only slept a few hours after i hooked everything up the subs weren't working. My ex said they worked perfectly so I retraced everything I did 5 times and then decided to look deeper at the amp. The power light was on and the fault light wasn't; that's one more reason I doubted my self. She wanted me to hang some drywall and the subs and amp were what she offered me
Attachments
good news is these will only run me a few dollars and I can easily solder them in. bad news is I spent 3 hours making sure my work was correct

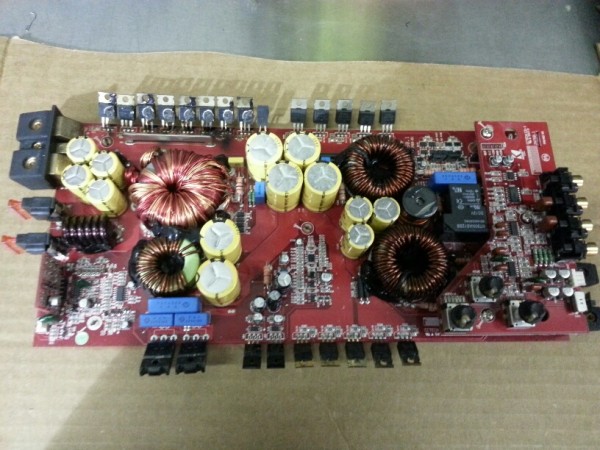

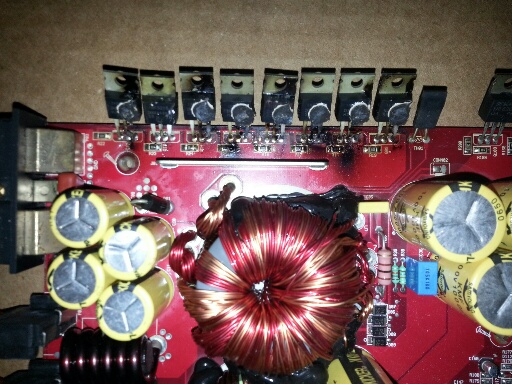

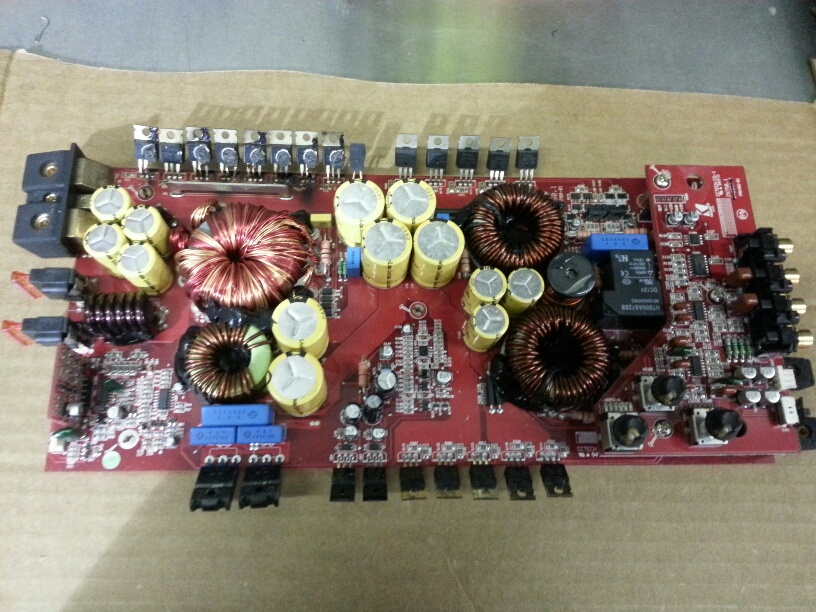

A row of bilateral transformers (fets) were melted. this is usually cause by under powering an amp or over working one and normally you can smell it... "worked perfectly" Well those few hours of sleep were spent in her bed atleast hahahah.
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Sat Mar 15, 2014 11:31 pm

Ok so my big trip of the weekend was to north jersey to pick up this gem
Attachments

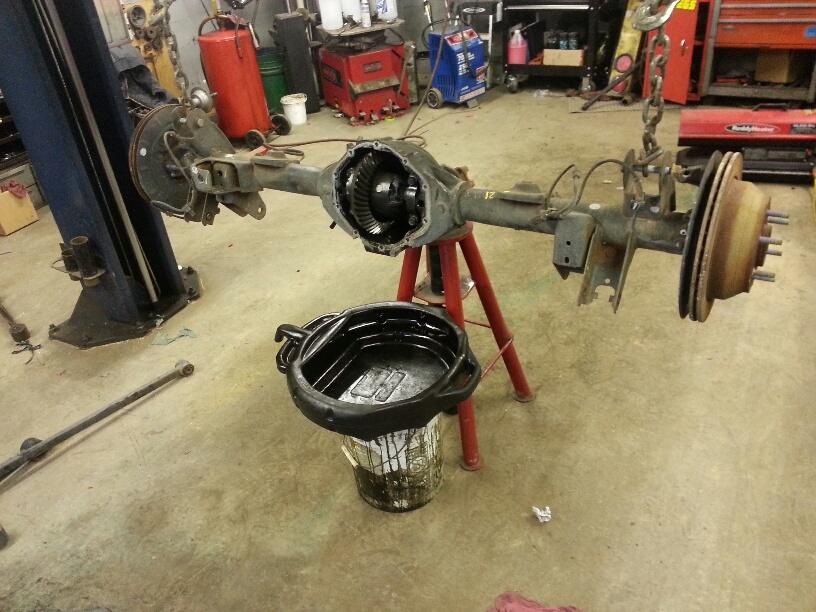

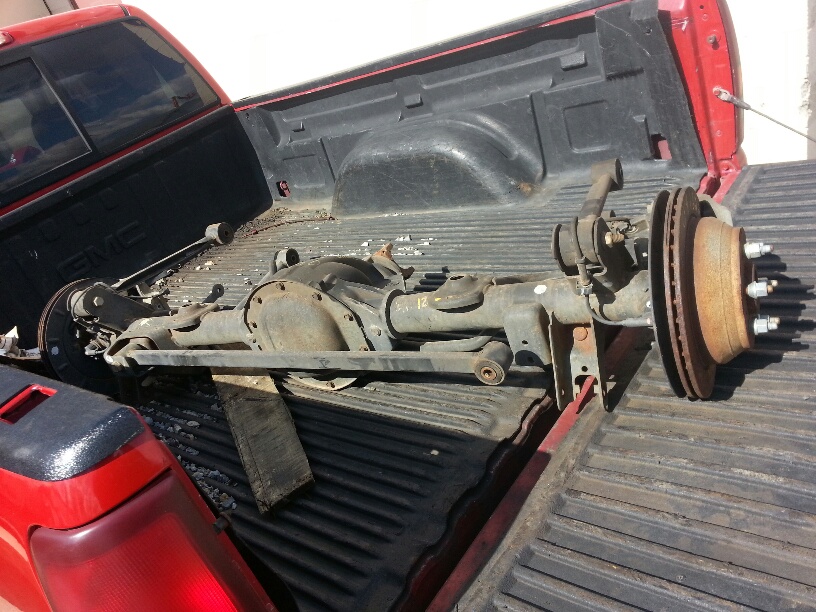

This came out of an 08 SWB with a 4.2 the guy told me on the phone it was out of a SWB with a v8. Either way it was a SWB with 18s that had an 8.6. he was just happy to get rid of it, it had been sitting there since 2009. He couldnt comprehend that I could careless about what gears were in it hahaha

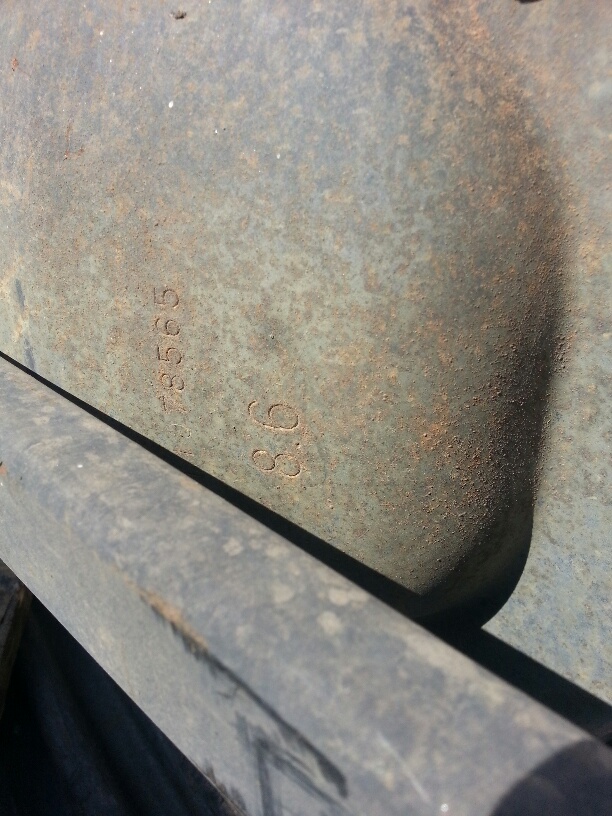

8.6 stamped right on the cover.
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Wed Mar 19, 2014 8:53 pm

Here are some more pics of this past weekend. Im still waiting on my shocks and struts to come before I mess with my suspension, hopefully they will come this week sometime. If not I was told my body lift shipped out today so I should have something to do!
Attachments

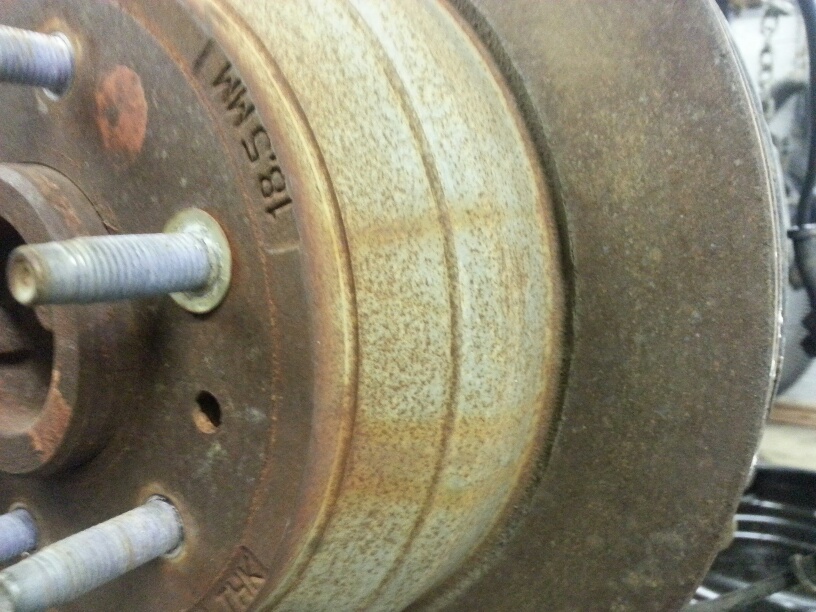

Anyone that has worked around cars for awhile should know why I took this pic. Although the rotors are rusted from sitting outside for a few years they had no groves in them and these retaining clips on the rotors are only on there for one reason... to keep the rotors from falling off on the assembly line. The first brake job they get taken off never to return again. So the way the rotors looked and these clips tell me this axle has very low mileage.
Just wanted to take a looking side to make sure everything looked ok
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Wed Mar 19, 2014 8:55 pm

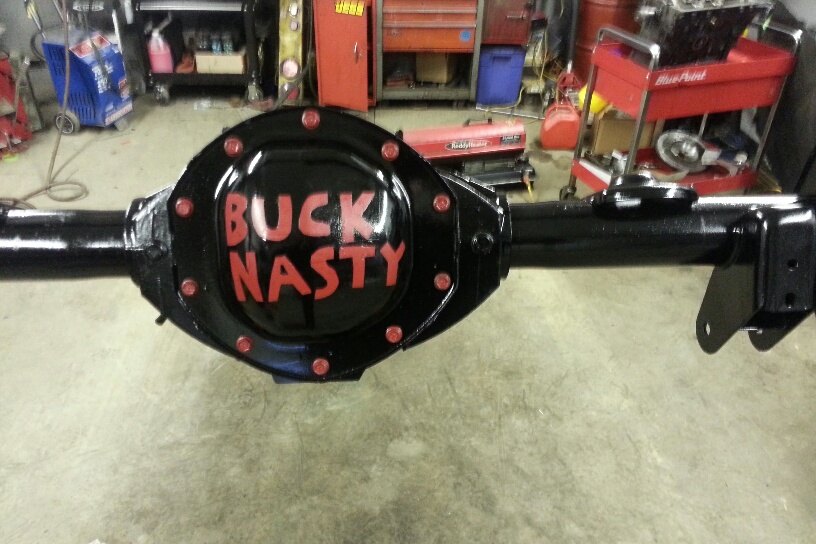

Had to do a little cleaning and painting and i ran out of stuff to do so I got a little creative. Lol its a little nickname my friends have called me for years.
Attachments
lol
lol yea I was bored
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Wed Mar 19, 2014 9:00 pm

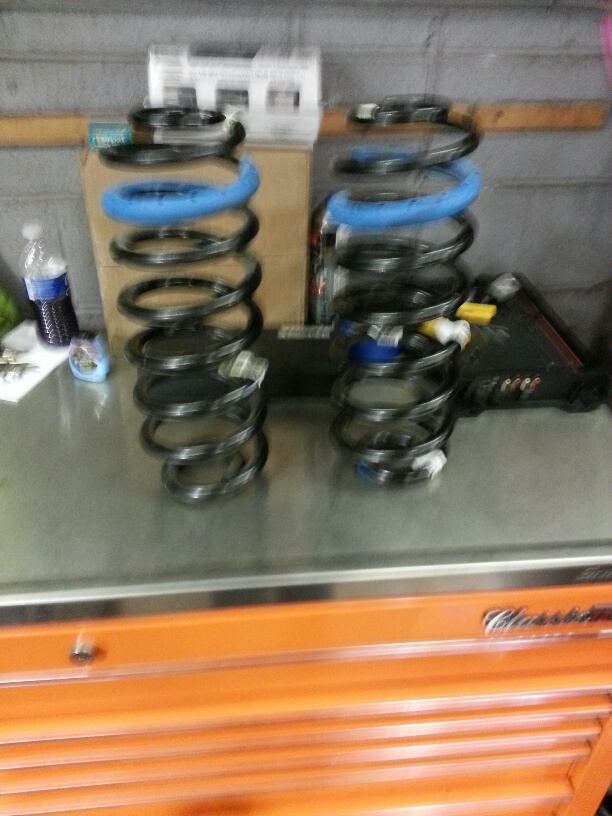

Forgot to add this pic these came Monday... It has really sucked just staring at all my parts but not having everything I need to do one part completely.
Attachments
z71 springs
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Mon Apr 07, 2014 12:57 pm

I didnt realize how much work was ahead of me at this time
Attachments

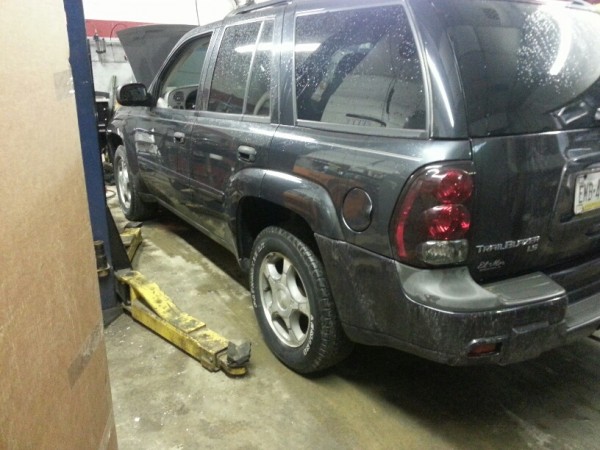

Factory height

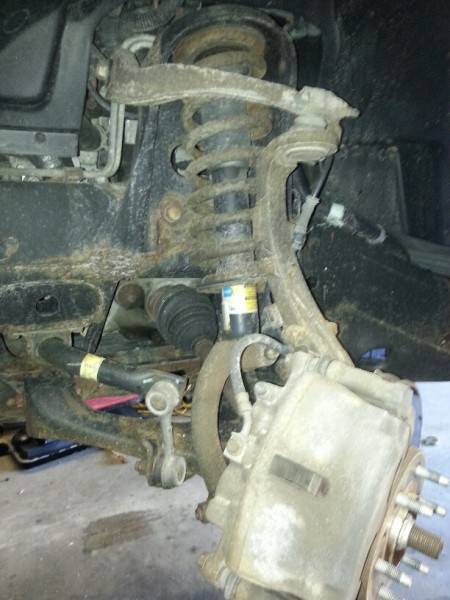

Ball joint time
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Mon Apr 07, 2014 1:01 pm

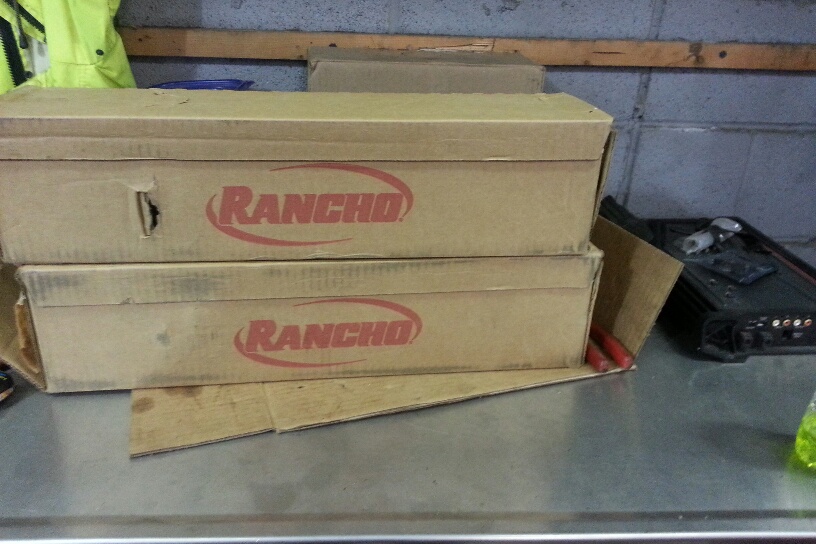

Waited for 3 weeks for bilstiens to find they were on national back order so I order ranchos after getting the wrong ones I finally got them
Attachments

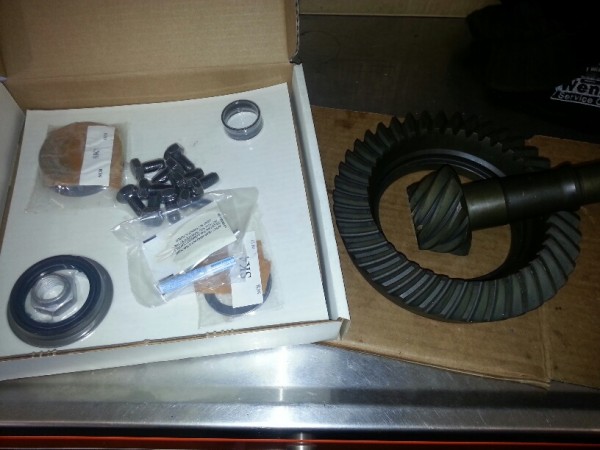

Precision gear 4.56 r&p for my rear and a minor install kit
Struts
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Mon Apr 07, 2014 1:06 pm

I got all my body lift stuff before my suspension stuff... didnt think that was gonna happen
Attachments
3" body complete I started at 8 and am done at 4am with a good hr or two of head scratching
Body lift in progress the bumper cutting threw me off for a little but I got it figured out
Factory ft height
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Mon Apr 07, 2014 1:10 pm

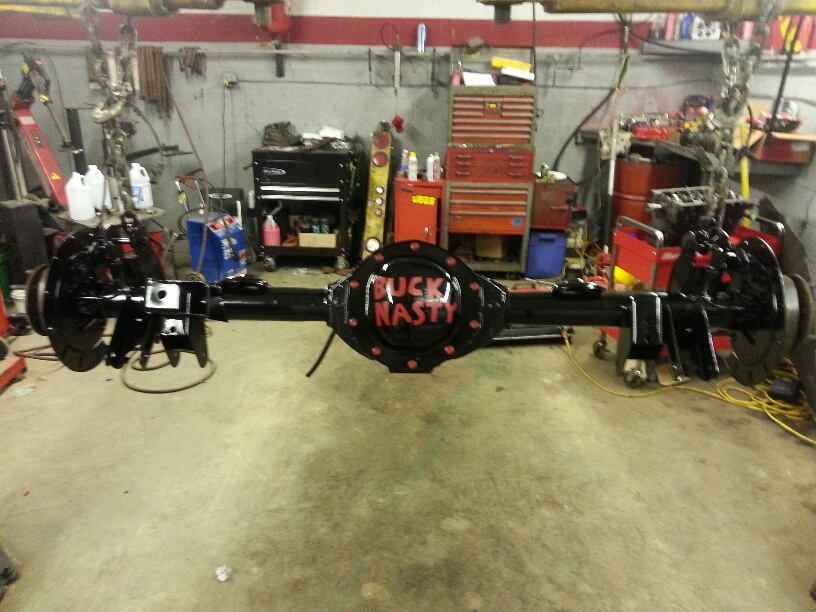

Finished up body lift and another night working on my rear
Attachments
Tires are in 35 12.5 17 grabbers

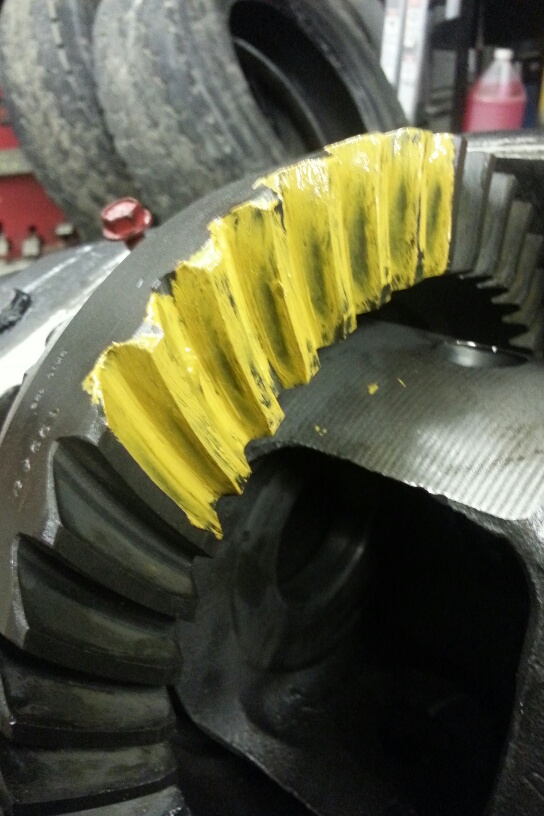

.05 backlash and a decent pattern im good with that

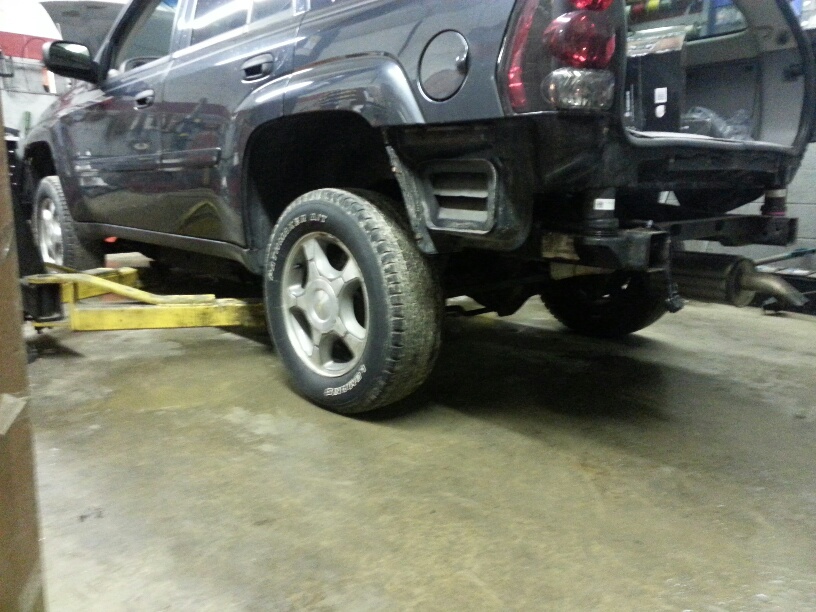

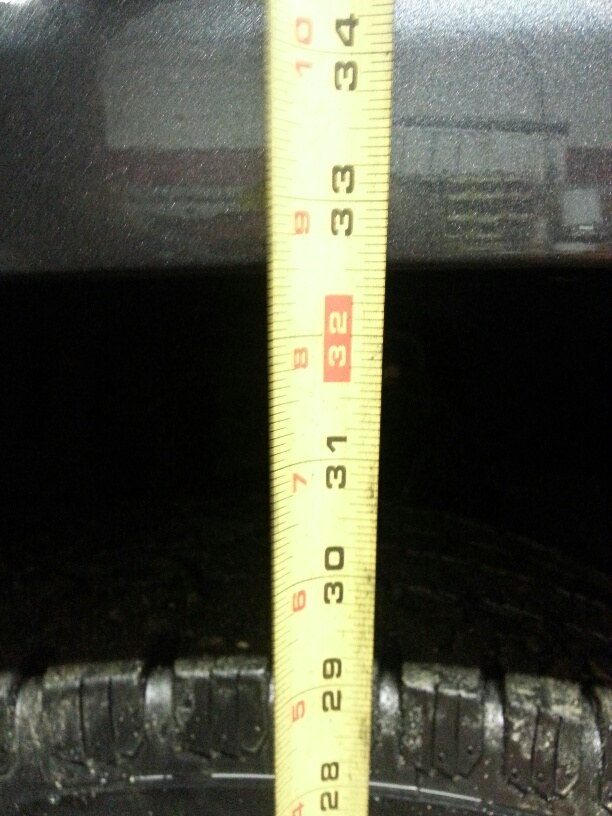

Ft fender height with 3" body
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD

by exb5182 » Mon Apr 07, 2014 1:14 pm

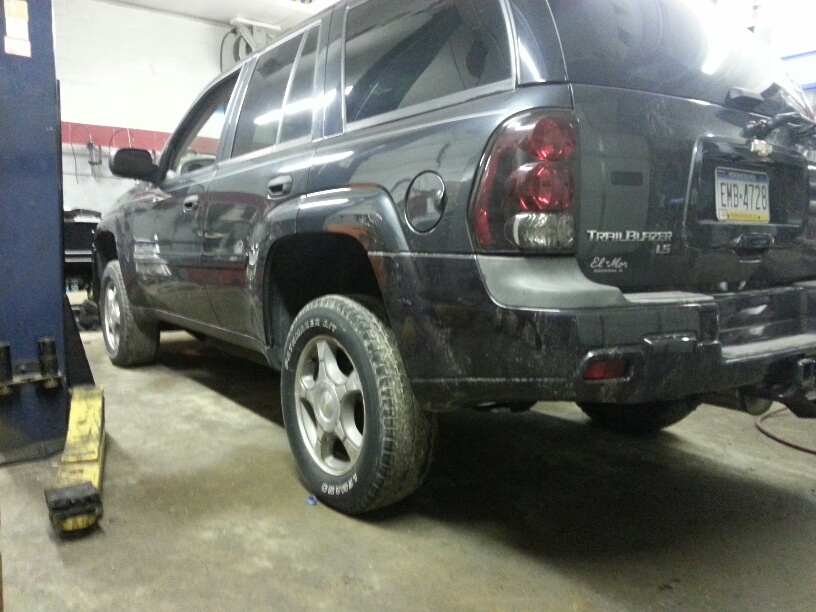

Friday night done work at 5pm time to get my 35s on
Attachments
I dont think the epa would like the rubber burning

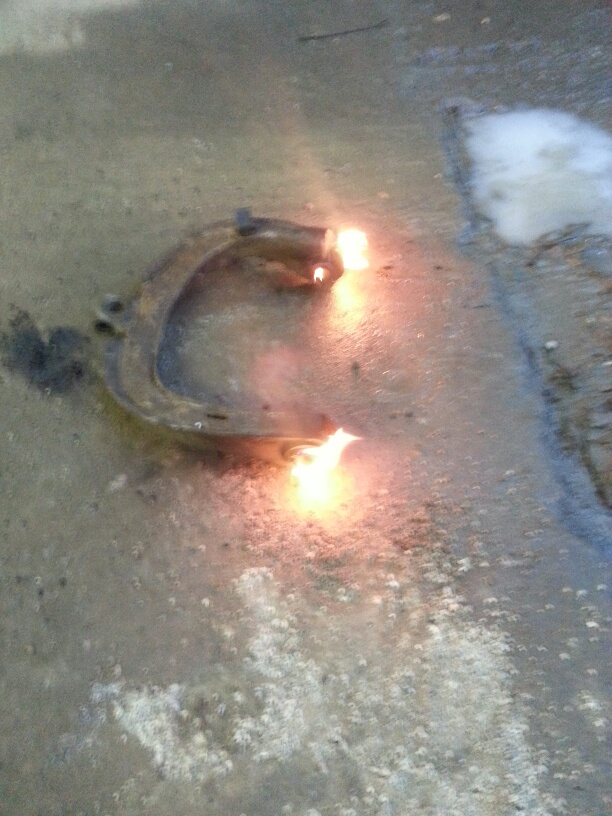

Had to burn my old bushings out for my poly bushings

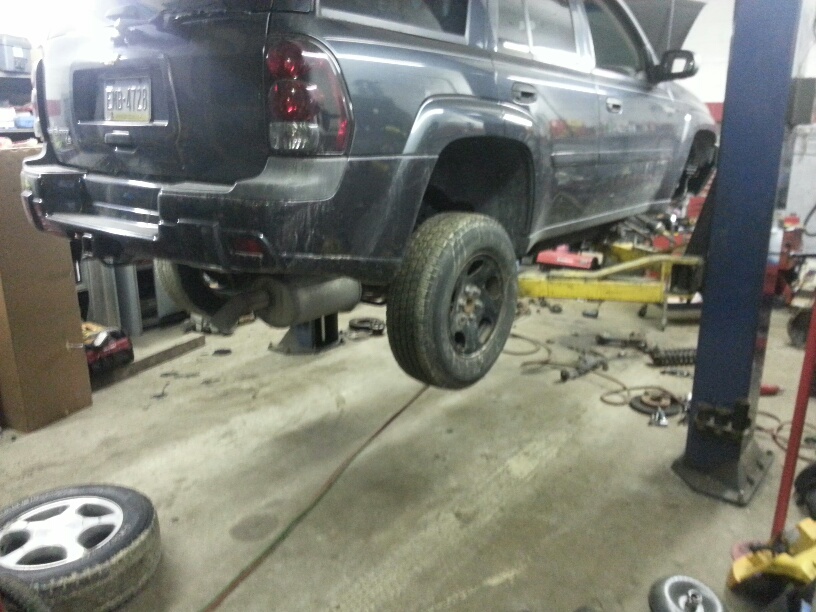

Getting to work on my suspension
exb5182
Member

Posts: 67
Joined: Fri Mar 07, 2014 2:58 pm
Location: Glenmoore, PA
Name: Edward R Jr.
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
