by v7guy » Tue May 19, 2015 12:57 am

Been working on this for a long while and it's starting to look like it's getting somewhat close to being done sometime this summer. Even after it's driveable I figure there'll likely be small things that need sorted out.

Essentially I've taken a mixture of 3500/2500HD parts and tossed em on the trailblazer.


The front diff from the 3500 wouldn't fit in the stock subframe, additionally it couldn't be kept at a reasonable height if I centered it even with a rear sump pan, so I used it in the stock configuration and tossed some 5.13s in it. With 37s it should act about like a stock trailblazer with 4.10s


2014-05-02 19.39.46.jpg

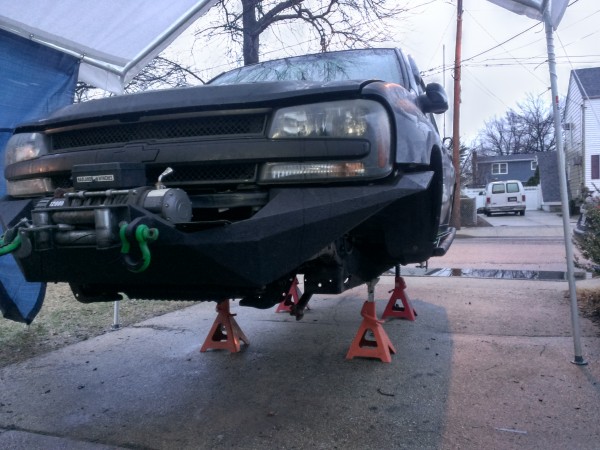

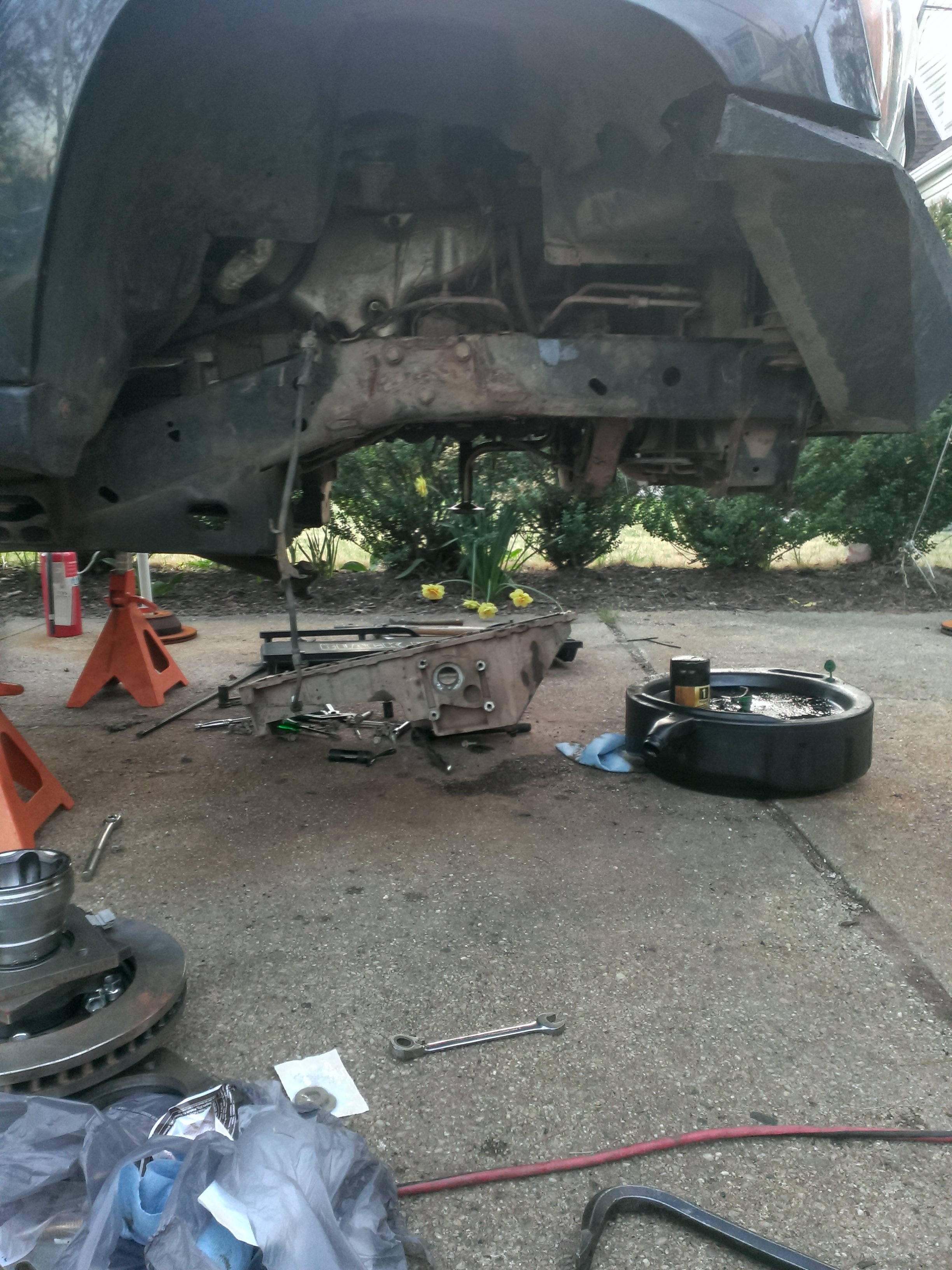

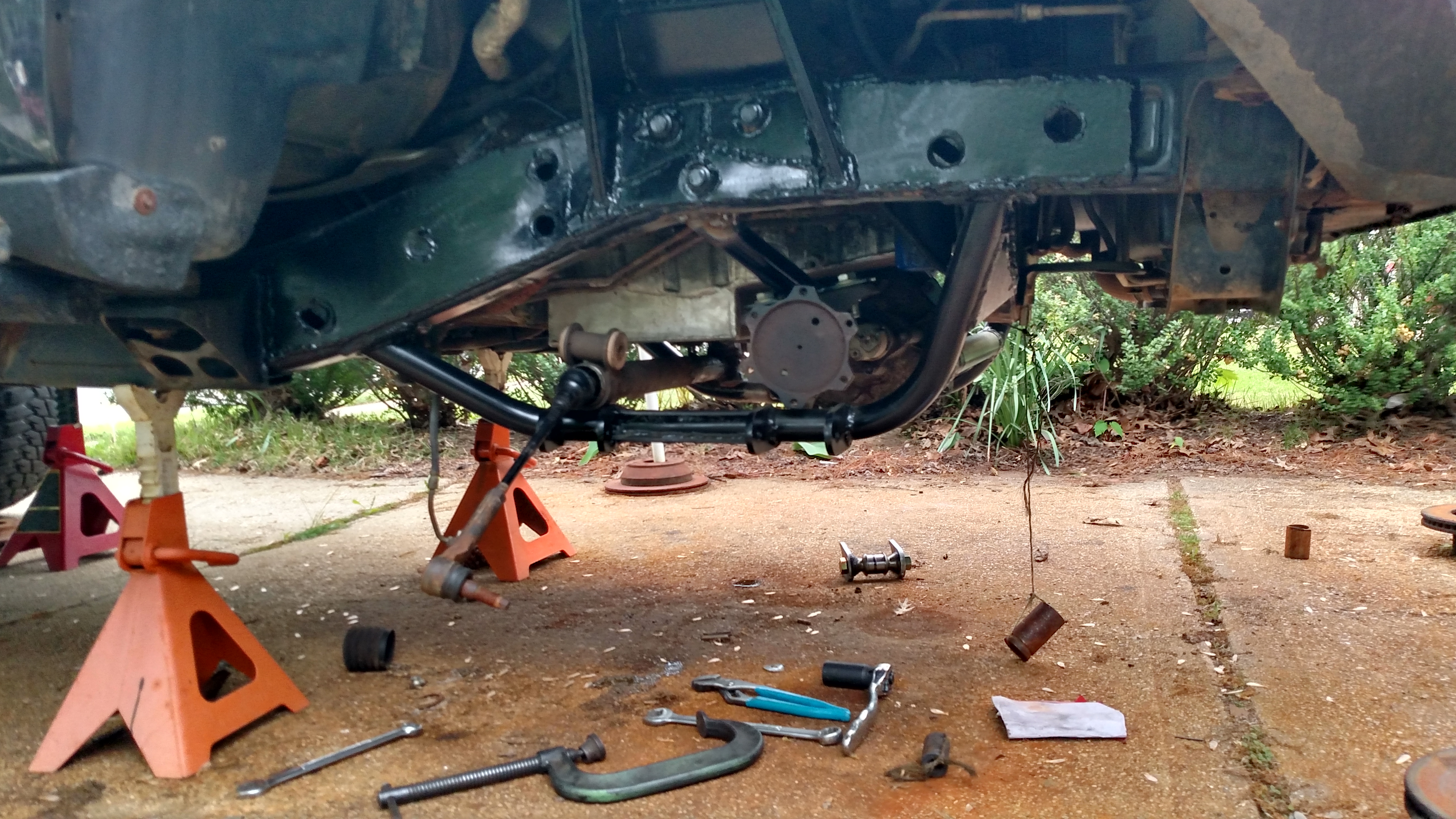

remove subframe, drop oil pan


2014-03-30 06.37.57.jpg
need some lights for the UFO


2014-05-02 19.40.01.jpg

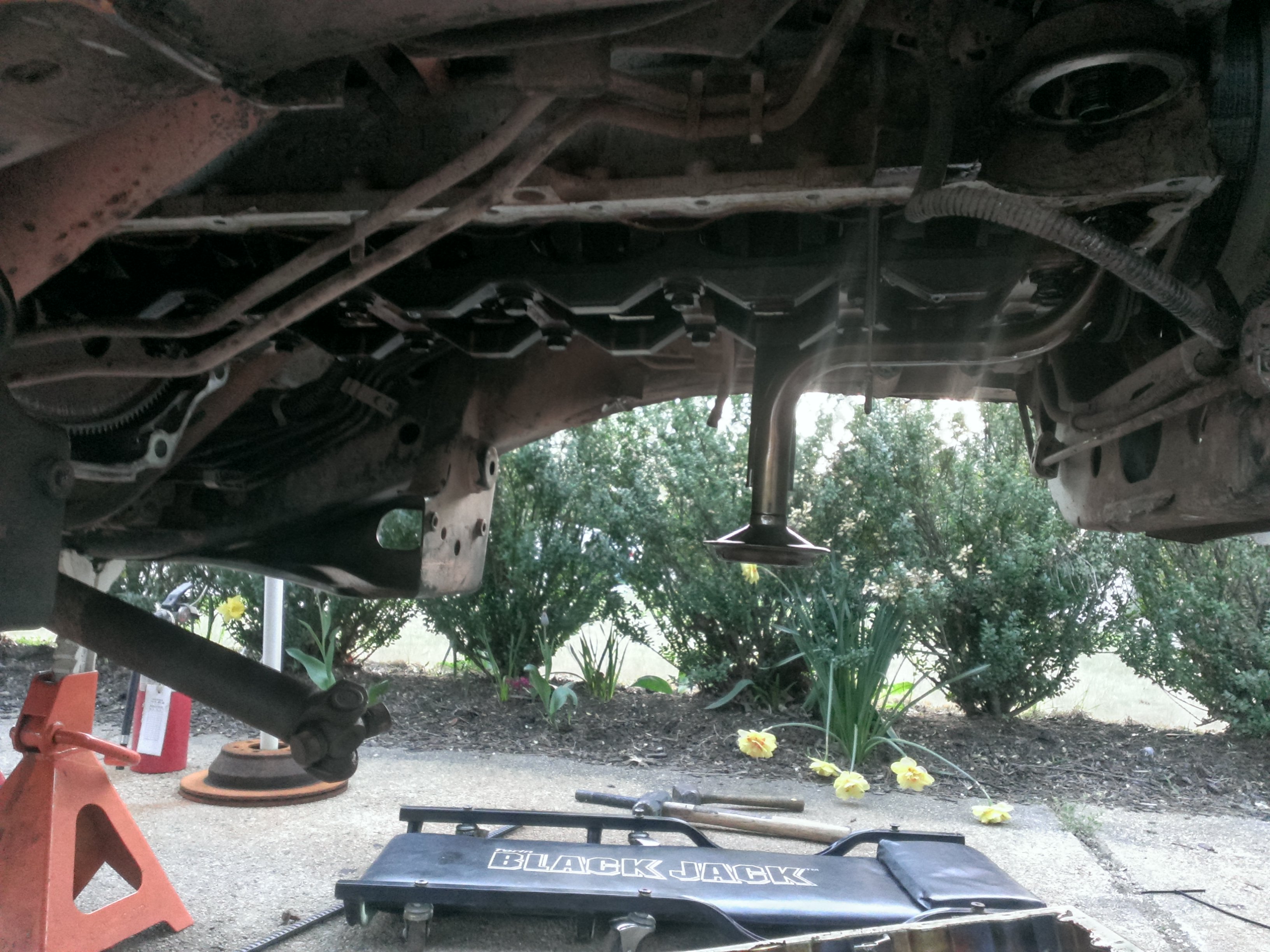

stock oil pickup won't work with rear sump


cobbled together a new pickup from a colorado I5


2014-02-11 09.56.40.jpg

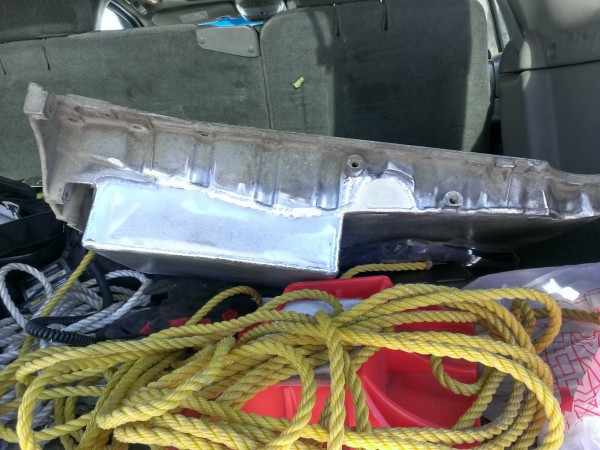

rear sump pan


then the front diff was put up in place to see where it would fit, the first of many many many times it would go in and come out
build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3711
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by v7guy » Tue May 19, 2015 1:05 am

a mix of some of the parts going in this thing.

2014-02-19 (1).jpg
lower a arm heim joint misalignment spacer
2014-02-19 (1).jpg (17 KiB) Viewed 5839 times


uniball cup that'll replace the balljoint


2014-03-24 15.43.38.jpg

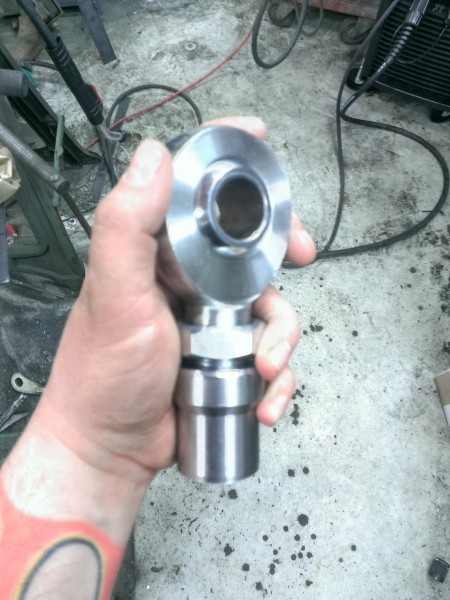

lower a arm heim joint


2014-03-14 10.00.24.jpg

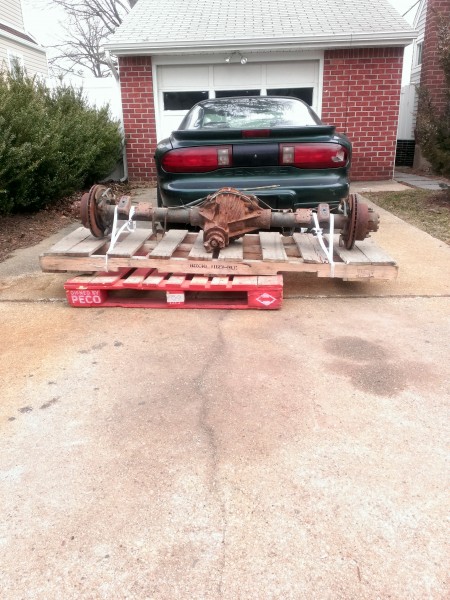

14 bolt rear axle from a 2500HD silverado


2014-04-10 (1).jpg
37" humvee wheels and tires
2014-04-10 (1).jpg (12.9 KiB) Viewed 5839 times






misc heim joints
build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3711
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by v7guy » Tue May 19, 2015 1:24 am

regearing the front diff was a bit problematic due to the short side stub shaft not wanting to come out. Moots and I tried for hours to get it out and it just wouldn't budge. After a little reading it turns out it's notorious for being impossible to remove and GM has a service bulletin telling the service techs to cut it off. Which in the end is what we ended up doing. In the process we did develop the infamous stub shaft twerk.




Eventually I got the wheels powdercoated, assembled them with James02, and aired them up without issue, tossed some airsoft beads in em for balance. Bent up some subframe tubes, made some diff brackets for the front diff and the rear axle too. Ended up using some brake lines from a 3500 silverado with a 6" lift and adapted them to the trailblazer lines.

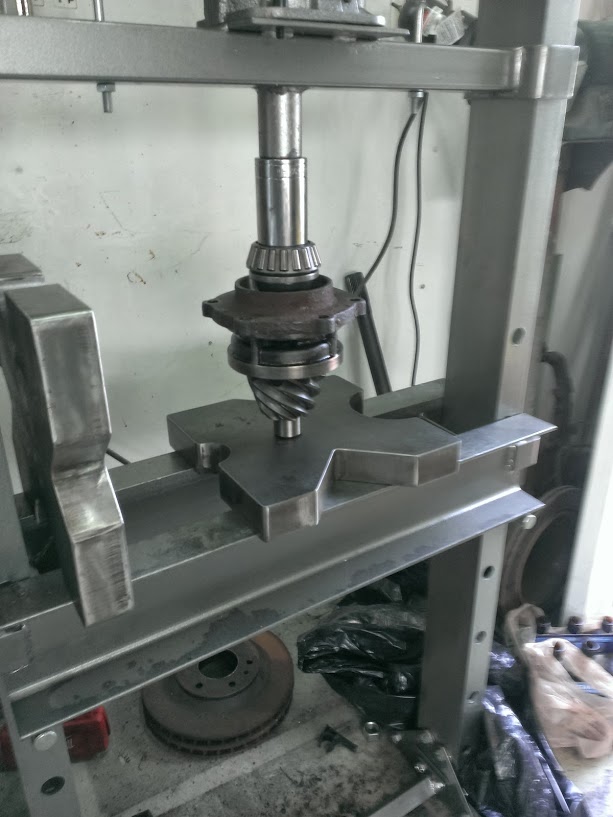

big ole pinion

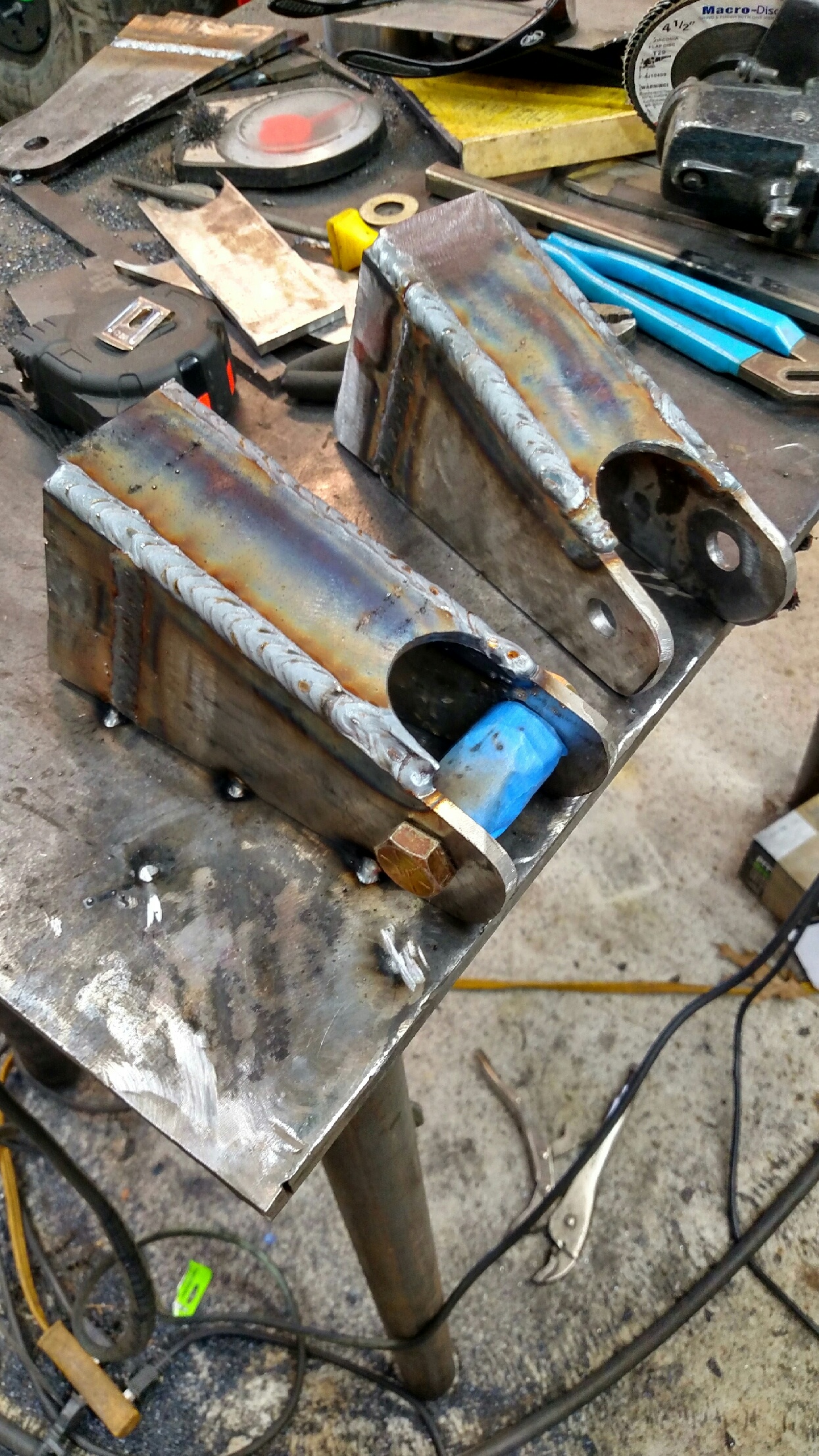

brackets and brackets


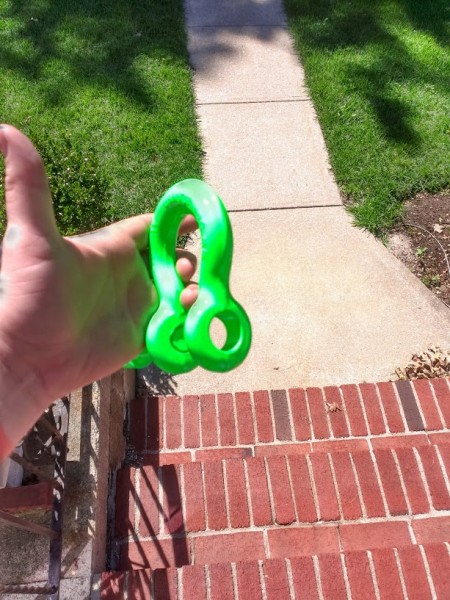

powdercoat

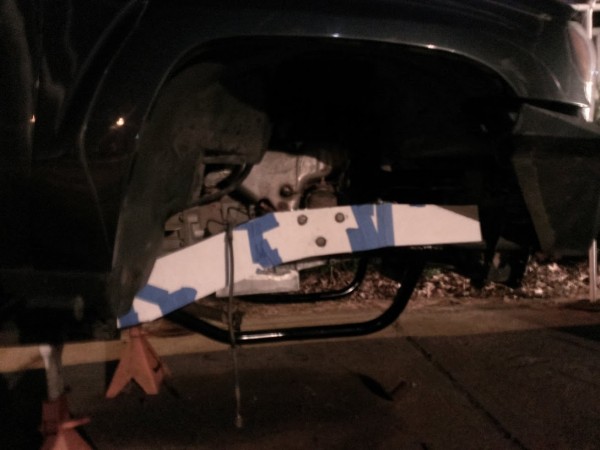

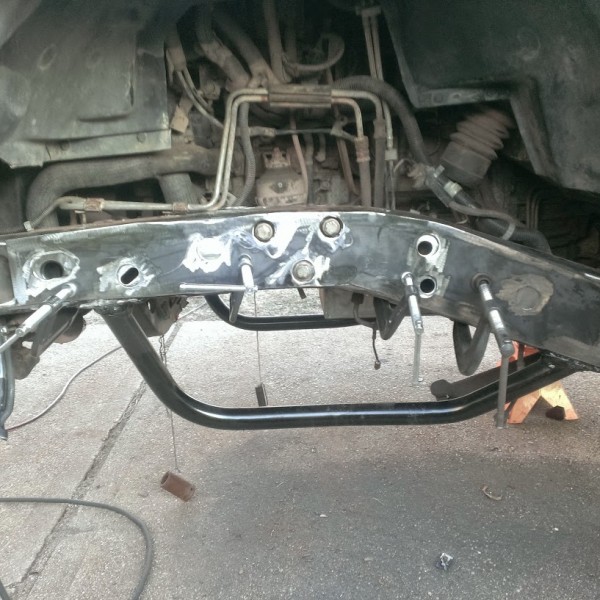

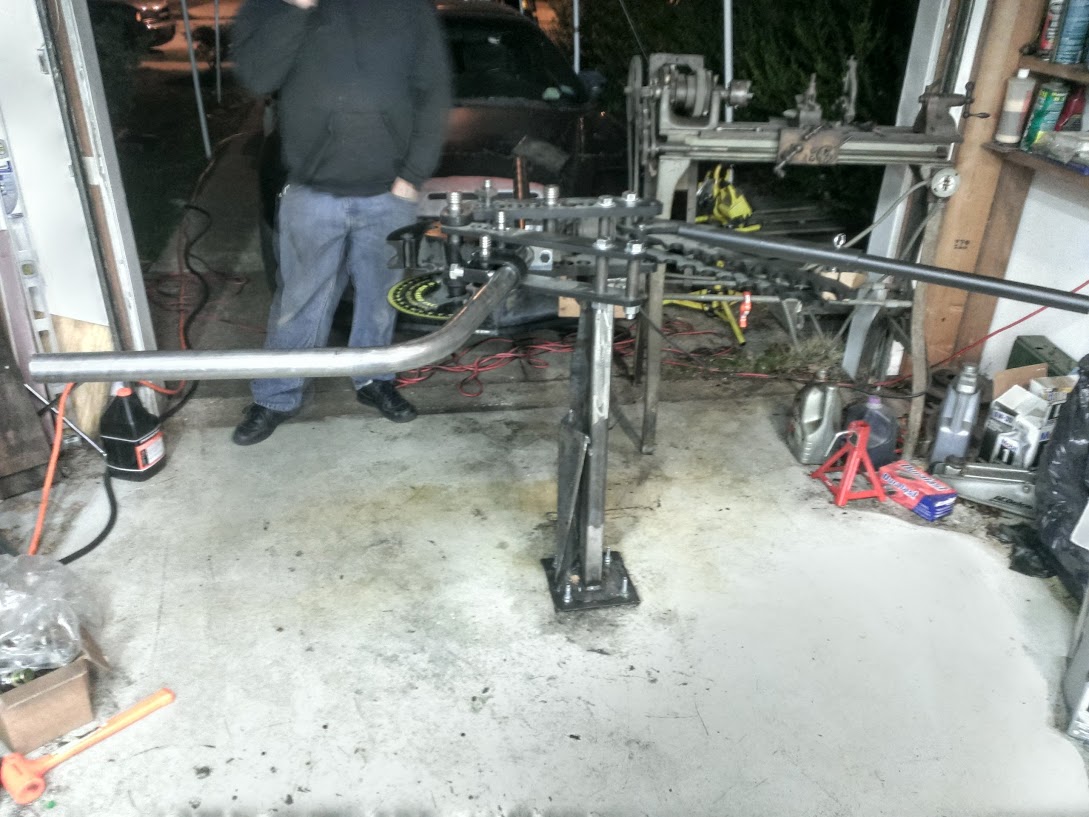

subframe tubes


subframe tubes


subframe tubes in


PHR bracket


PHR bracket

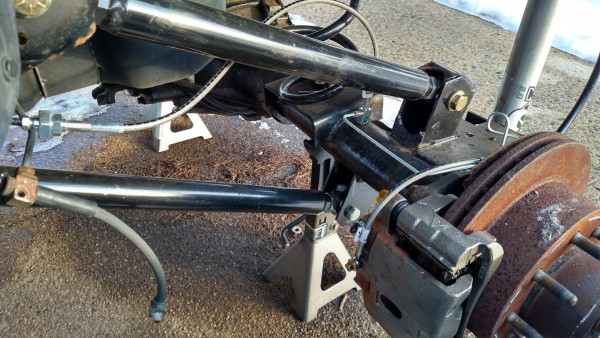

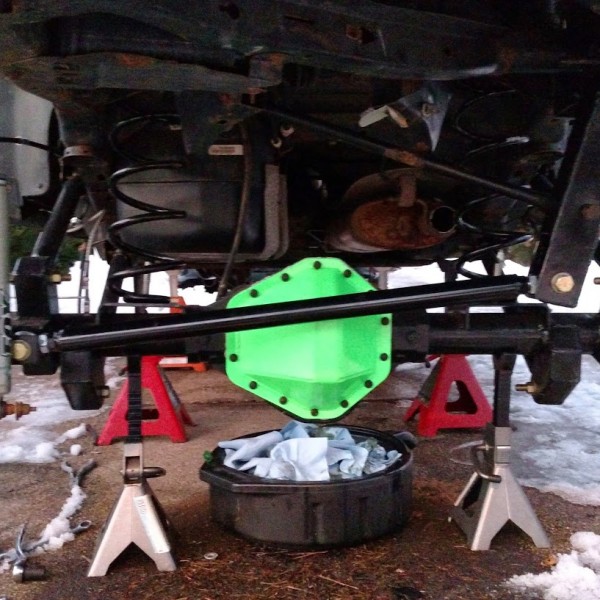

axle in and brake lines ran




build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3711
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by v7guy » Tue May 19, 2015 1:35 am

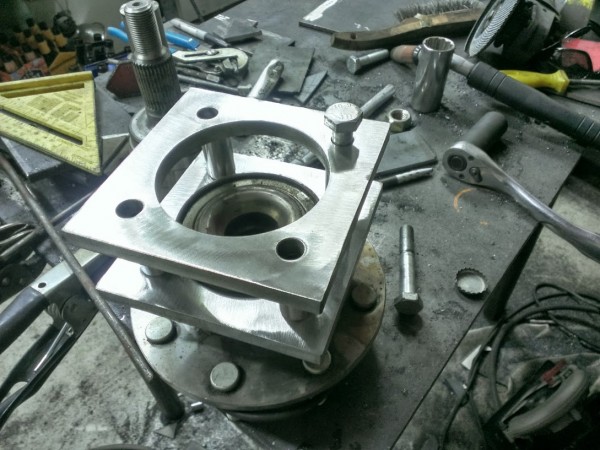

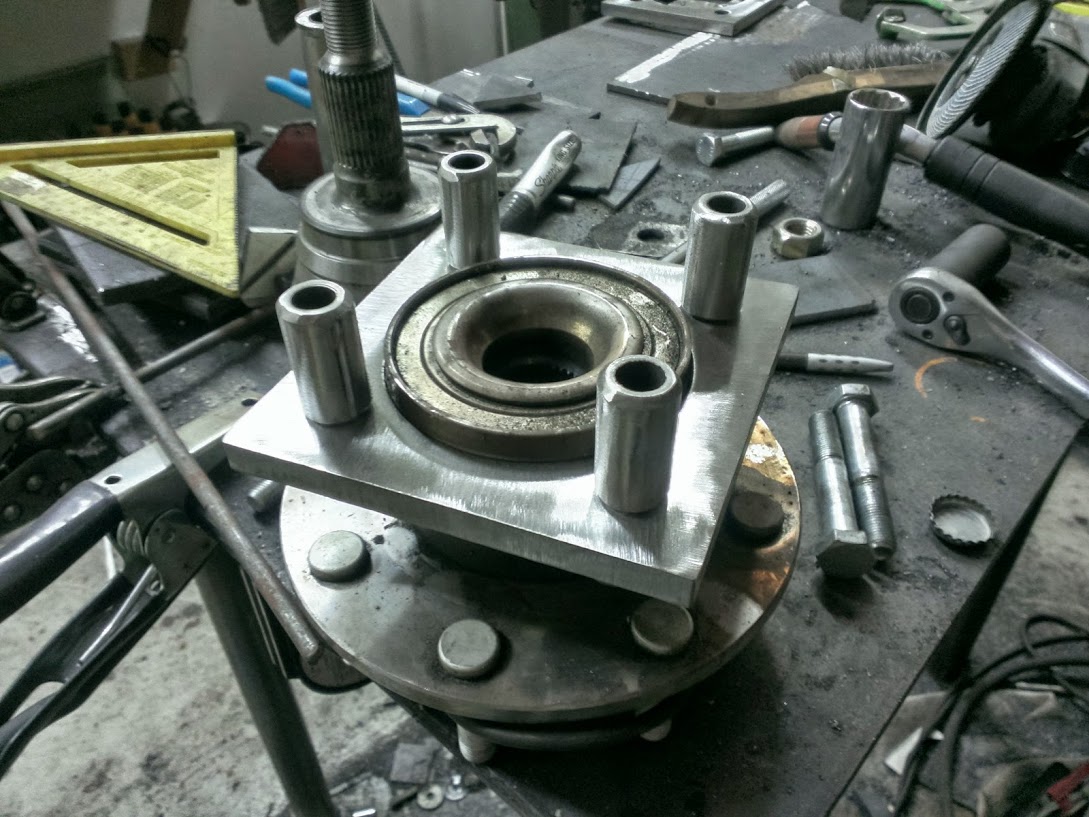

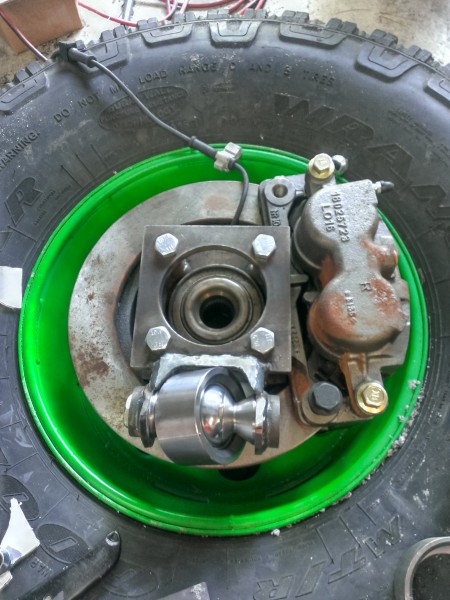

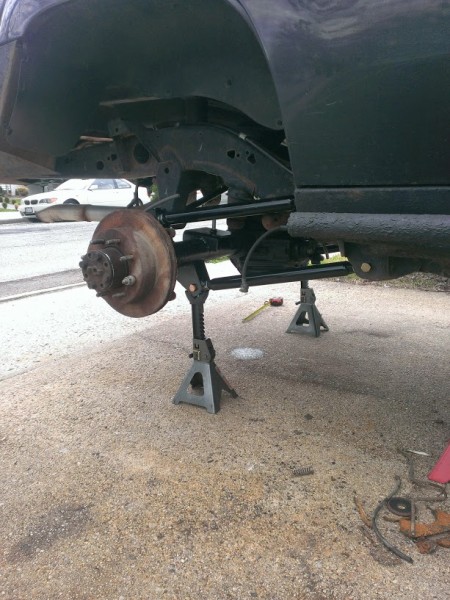

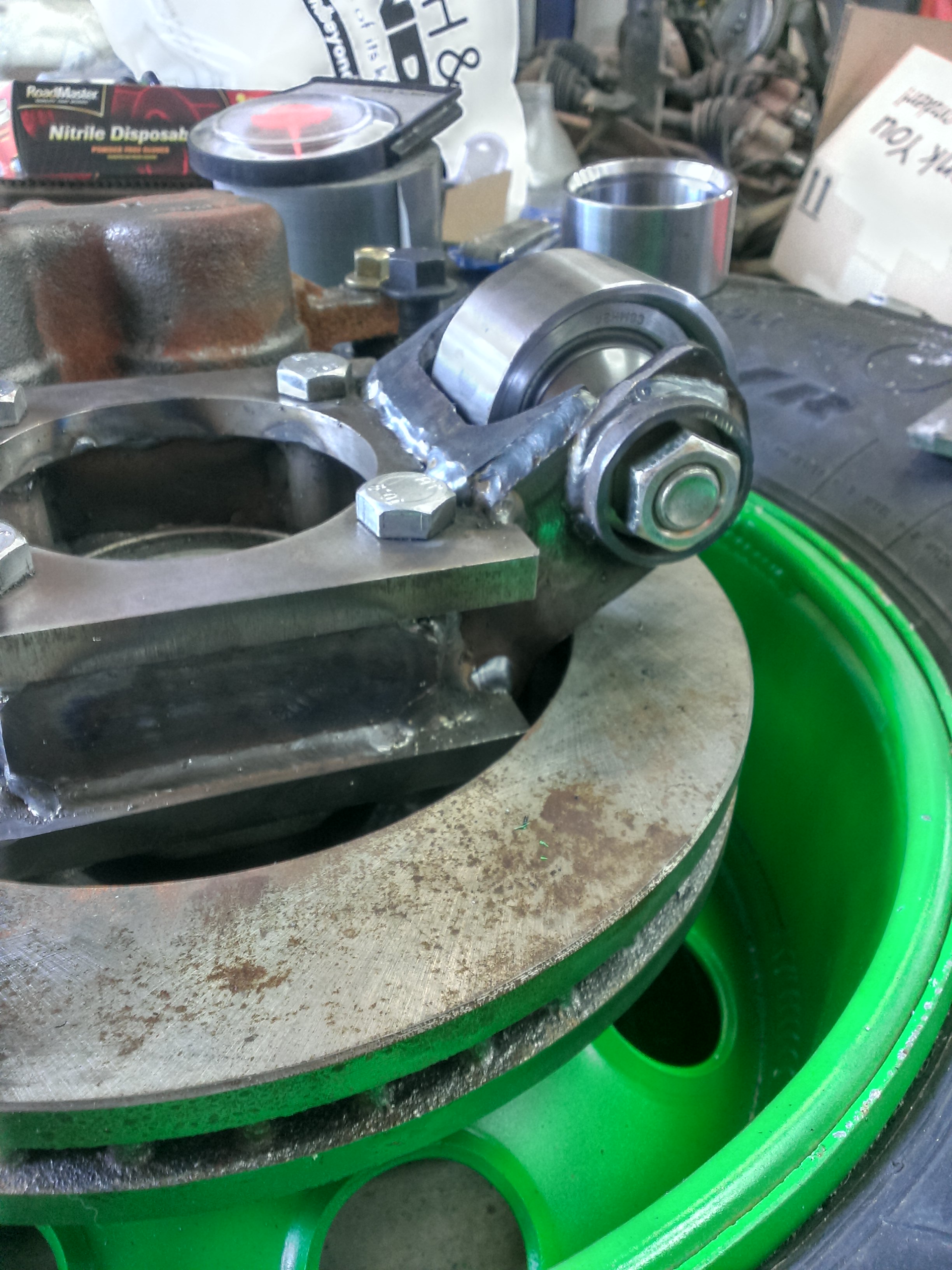

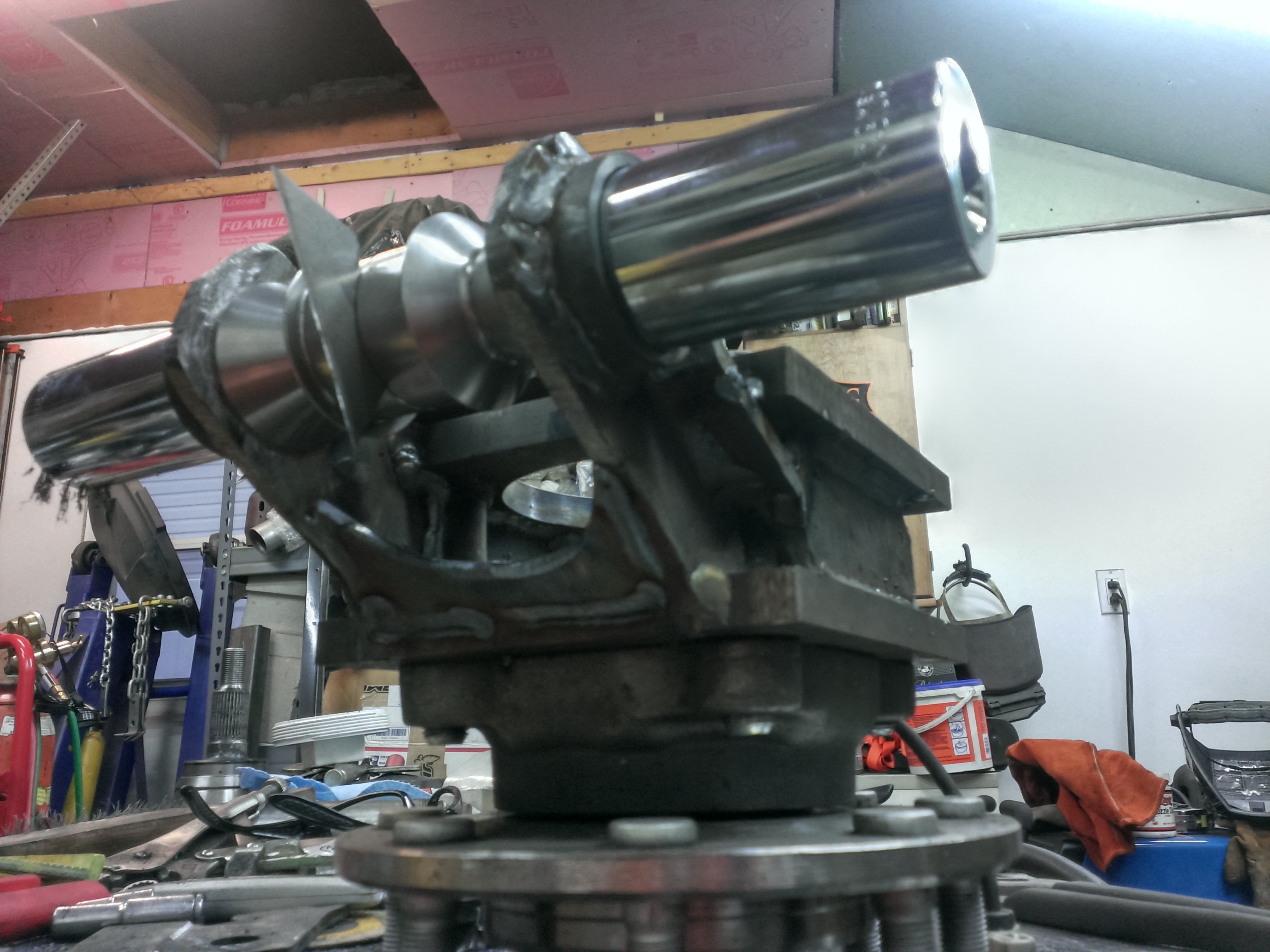

There wasn't anything I could find that would fit the design, so I ended up building my own spindles that let a 3500 hub bolt to it.

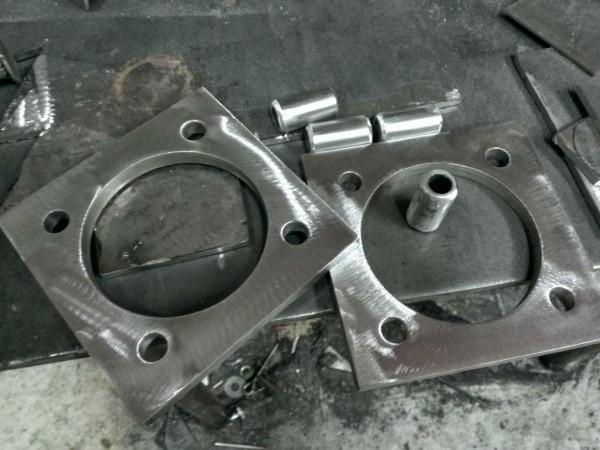

parts




bolted together




2014-09-26 (1).jpg
2014-09-26 (1).jpg (13.64 KiB) Viewed 5838 times


2014-07-09 20.15.08.jpg


2014-07-07 18.08.55.jpg
clearance


2014-07-07 18.07.58.jpg
build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3711
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by v7guy » Tue May 19, 2015 1:43 am

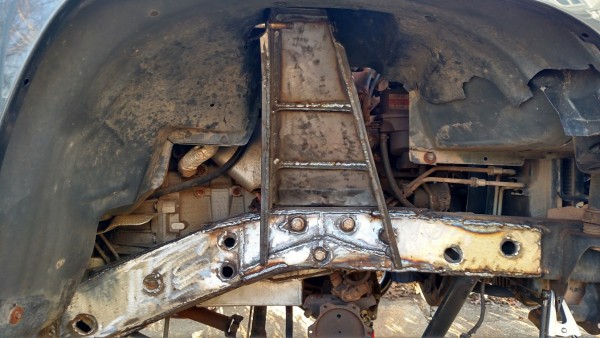

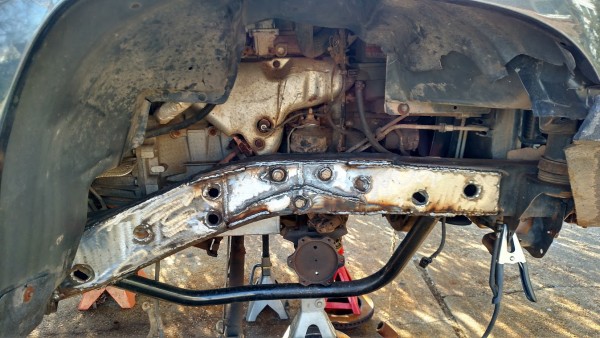

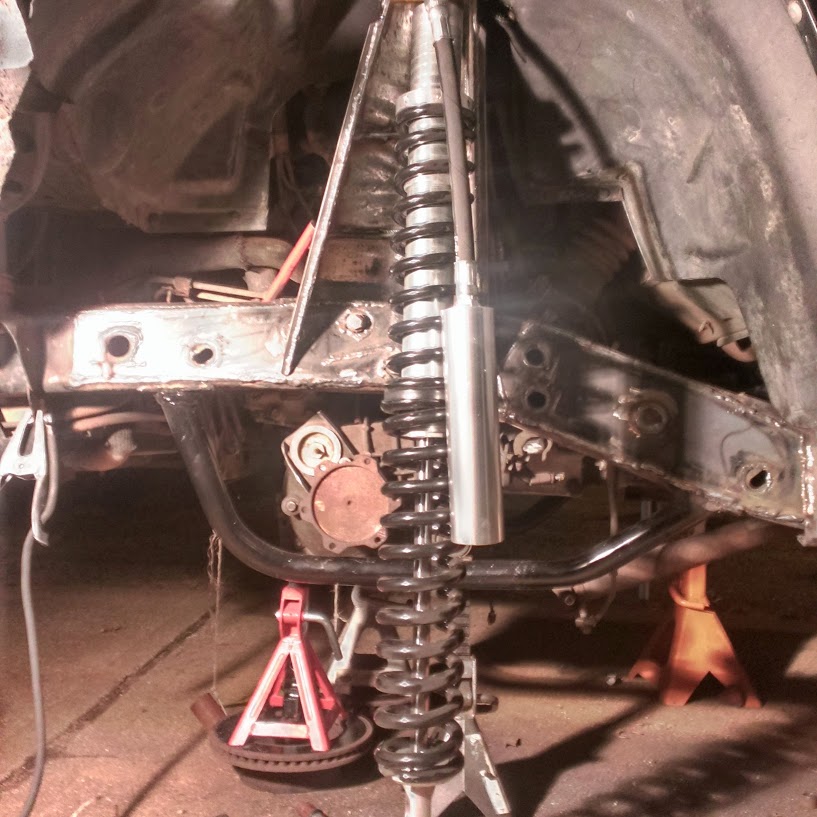

From there the frame needed plated and some shock towers needed to be built.

2015-01-02 (1).jpg




2015-01-02 (2).jpg
2015-01-02 (2).jpg (13.02 KiB) Viewed 5838 times








2014-12-31 (1).jpg
2014-12-31 (1).jpg (17.2 KiB) Viewed 5838 times




2015-03-29 (2).jpg


build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3711
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by v7guy » Tue May 19, 2015 1:52 am

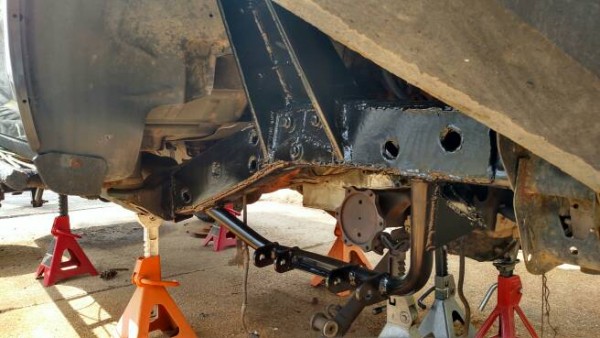

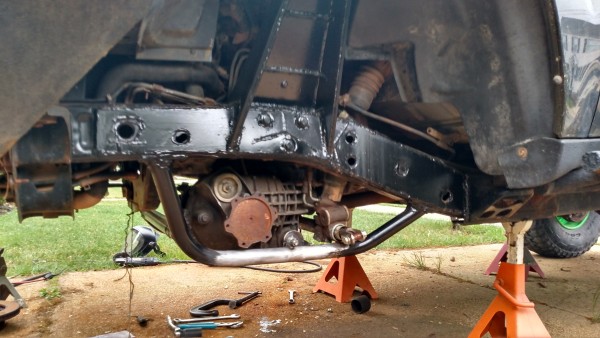

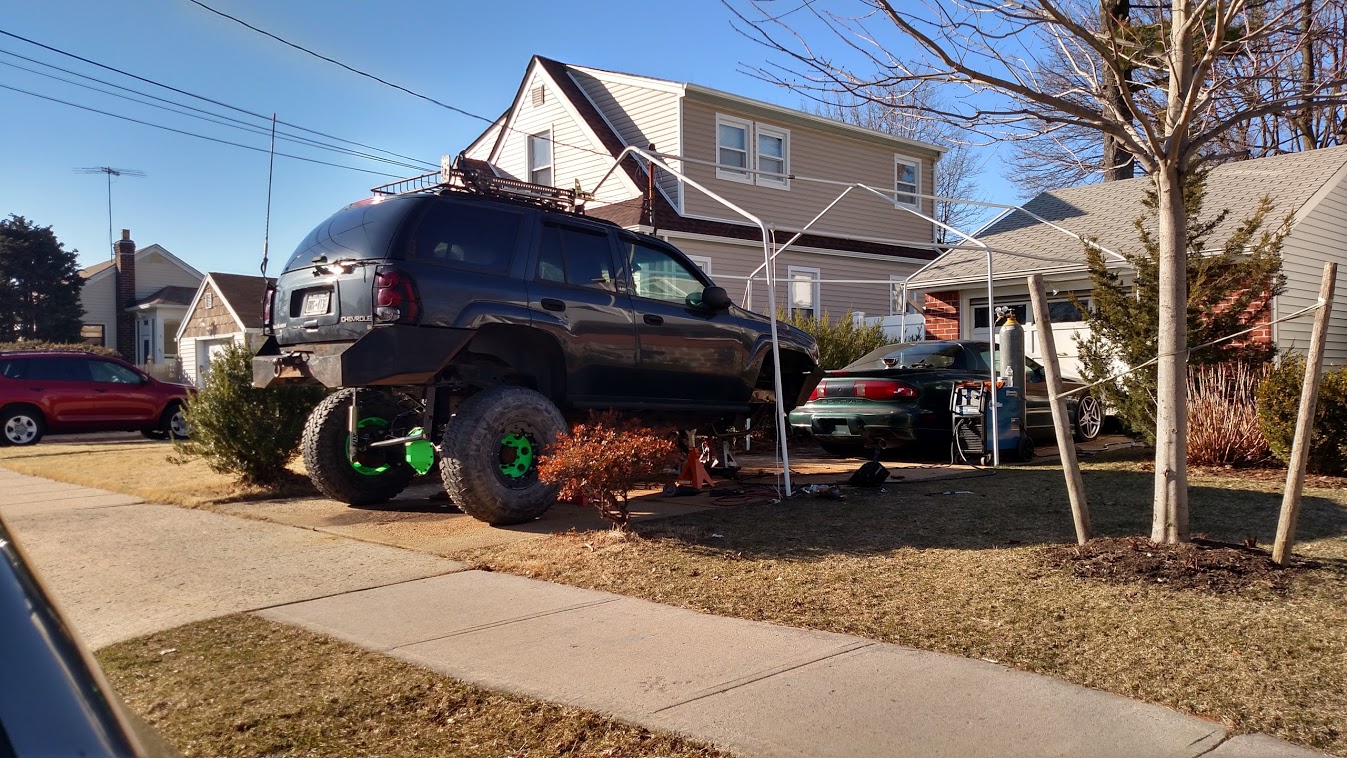

Front diff bolted in, steering rack roughly in place and a few misc pics

2015-05-18 18.09.17.jpg


2015-05-18 18.09.54-3.jpg

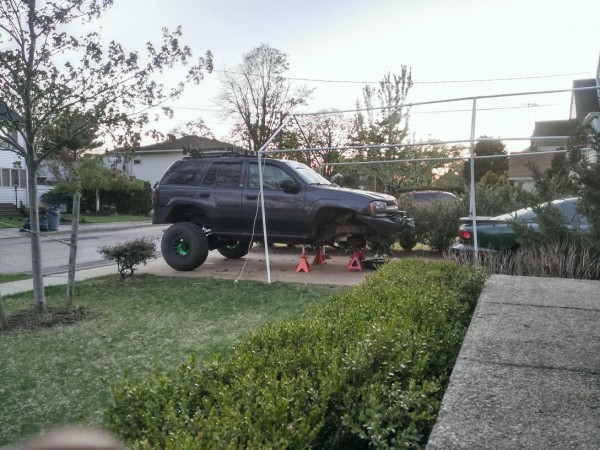

2015-03-29 (1).jpg
build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3711
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by bartonmd » Tue May 19, 2015 6:50 am

Coming right along!

Mike
bartonmd
Contributing Author & Off-Road Vendor

Posts: 4471
Joined: Wed Sep 09, 2009 9:35 am
Location: IN, Indianapolis
Name: Mike
Vehicle Year: 2007
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ G80
Rank: Offroad Rated

by HARDTRAILZ » Tue May 19, 2015 9:07 am

Atta boy! Well done! Good things come to those that wait.
I hate to advocate weird chemicals, alcohol, violence or insanity to anyone...but
they've always worked for me.
User avatar
HARDTRAILZ
Lifer

Posts: 6305
Joined: Sat Sep 12, 2009 1:49 am
Location: IN, Batesville
Name: Kyle
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Extreme Offroader

by Trail X » Tue May 19, 2015 11:25 am

You are a crazy person!

Hey, when am I going to see this at TECORE?

Is the final picture the planned resting height of this thing?
8-) Build Thread | ExPo Build | YouTube Videos
Not all who wander are lost. -Tolkien
User avatar
Trail X
Founder

Posts: 9895
Joined: Mon Sep 07, 2009 10:22 pm
Location: VA, Roanoke
Name: James Downing
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Aftermarket Locker
Rank: Expedition Guide

by v7guy » Tue May 19, 2015 3:35 pm

I've gotta find some springs to drop the ass end a bit or buy some coilovers... probably shoulda done coilovers from the get go. At the highest point (hi lift on the roof basket) it's about 7' 8", I think I can get it real close to 7'. There's already a few items I would do differently if I were to tackle this again. But that's kinda the case with any build I think.


Appearance at TECORE? Eh, absolute earliest would be in the fall. At my current pace I'm doing pretty good, if overtime gets stupid again and I go back to 90 hour work weeks who knows. I'd like to be daily driving it for a few weeks before I try any real trips with it.
build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3711
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by tarsh » Tue May 19, 2015 7:55 pm

Wow, is all I have to say... Wow... Ur crazy Jason. But I do plan to do the same..ish at some point as well. U got skillz brutha. Can't wait to see a finished product of sorts
Take the path less traveled
My Build Thread
User avatar
tarsh
Trail-Blazer

Posts: 483
Joined: Sun Jul 21, 2013 12:16 am
Location: MI, Holly
Name: Nathan Schroeder
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by Eredin » Tue May 19, 2015 7:58 pm

Wow, that's insane, but nicely done. Looking forward to the results, great work!
1988 Pontiac GTA WS6 - LSX Swap

2005 Chevrolet Trailblazer LT
2012 Chevrolet Cruze LT

Build Thread
User avatar
Eredin
Trail-Blazer

Posts: 290
Joined: Tue Jun 17, 2014 9:42 am
Location: KY, Paducah
Name: Caleb
Vehicle Year: 2005
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ G80

by maricard » Tue May 19, 2015 8:12 pm

Great project!
_____LESS IS MORE_____


Ludwig Mies van der Rohe

My build thread : viewtopic.php?f=74&t=5892
User avatar
maricard
Off-Roader

Posts: 191
Joined: Tue Aug 05, 2014 6:25 pm
Location: Québec, QC, Canada
Name: Marc-Antoine
Vehicle Year: 2002
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ G80

by Opeth » Tue May 19, 2015 10:07 pm

Wow... Simply awesome
User avatar
Opeth
Addict

Posts: 845
Joined: Tue Oct 05, 2010 4:46 pm
Location: NY, Solvay
Name: Cody
Vehicle Year: 2006
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Trail Ready

by ErikSS » Thu May 21, 2015 6:55 pm

ok, with all these positive comments... knowing Jason as well as I do... and knowing how long he's been working on it... Dude, once it drives I'll be impressed. lol So far you're just insane! :-)
It's not how fast you go. It's how quick you get there. Lifted TBSS Build
User avatar
ErikSS
Lifer

Posts: 2031
Joined: Fri Apr 26, 2013 5:23 pm
Location: IL, Flossmoor
Name: Erik
Vehicle Year: 2008
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD w/ Limited Slip
Rank: Offroad Rated

by Moots1288 » Thu May 21, 2015 7:43 pm

Ok, as close me and Jason are... this is awesome but he still sucks
User avatar
Moots1288
Veteran

Posts: 1964
Joined: Fri Feb 24, 2012 8:42 pm
Location: Long island
Name: Moots
Vehicle Year: 2006
Vehicle: GMC Envoy
DriveTrain: 4WD
Rank: Offroad Rated

by Regulator1175 » Sat May 23, 2015 12:24 am

Ehh, I will give you $500 for it.
Twenty years from now you will be more disappointed by the things that you didn’t do than by the ones you did do.
So throw off the bowlines. Sail away from the safe harbor. Catch the trade winds in your sails. Explore. Dream. Discover.
- Mark Twain
--Build--
User avatar
Regulator1175
Veteran

Posts: 1040
Joined: Wed Mar 17, 2010 3:48 pm
Location: IN, Warsaw
Name: Matthew McClelland
Vehicle Year: 2002
Vehicle: GMC Envoy
DriveTrain: 4WD w/ G80
Rank: Extreme Offroader

by v7guy » Sat May 23, 2015 2:51 pm

Meh, it's probably not even worth that Matt, especially after it falls apart LOL


Got an order in from ruffstuff today for some of my missing parts, that's exciting.
build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3711
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by v7guy » Tue May 26, 2015 10:34 pm

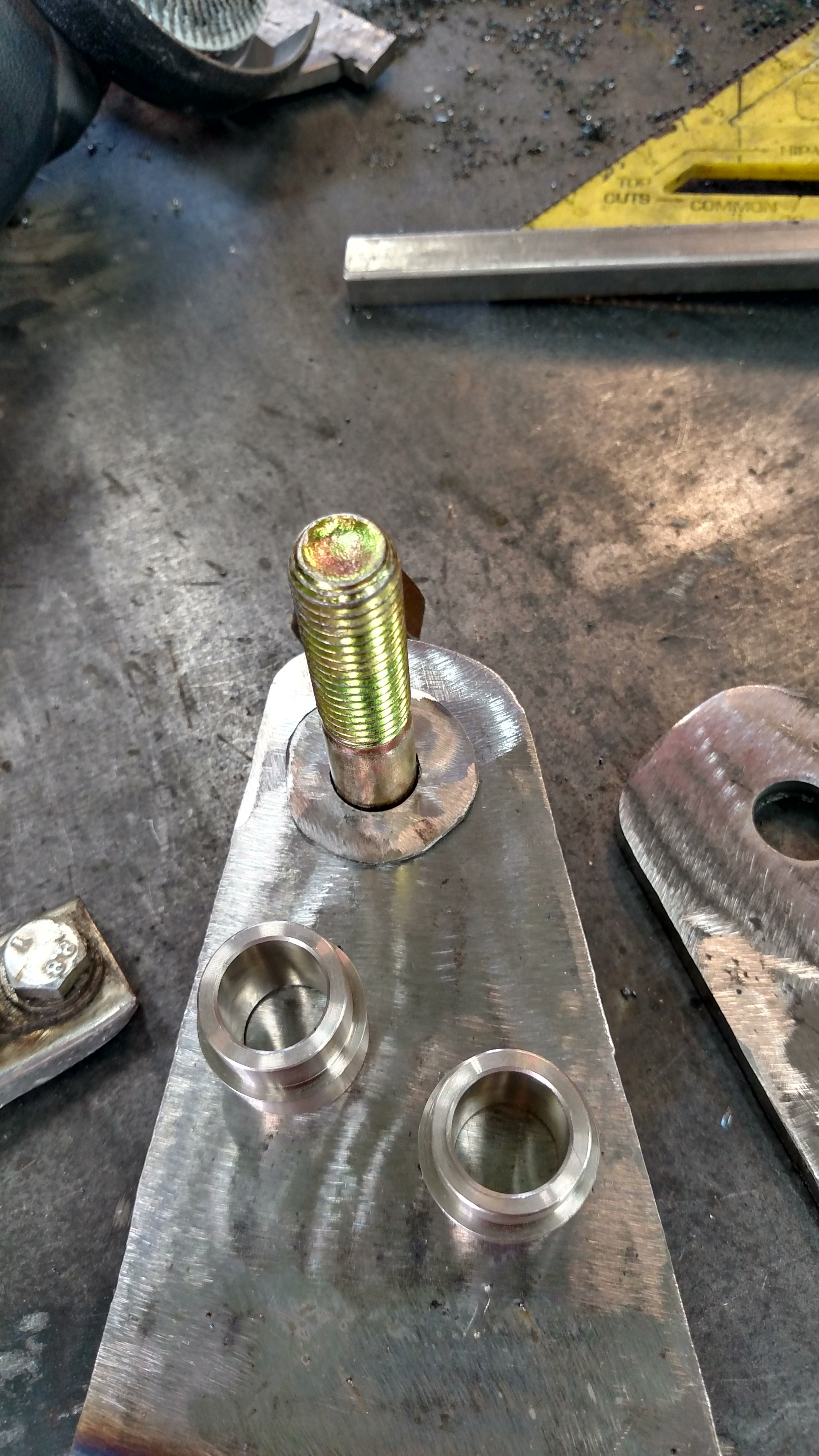

Got some time to start working on the upper A arm brackets, lil spacer put next to the misalignments to make sure it stays wide enough after welding. Also had an epiphany that I could use a hole saw to cut the rounded space for the rod end, dunno why it never occurred to me before. Looking forward to welding em on the frame tomorrow.





build thread

All things in moderation, including moderation.
Some people never go crazy... what truly horrible lives they must lead
User avatar
v7guy
Moderator

Posts: 3711
Joined: Wed Mar 09, 2011 10:17 pm
Location: NY, long island
Name: Jason
Vehicle Year: 2004
Vehicle: Chevrolet TrailBlazer
DriveTrain: 4WD
Rank: Offroad Rated

by Trail X » Tue May 26, 2015 10:51 pm

Nice stress transition with that hole saw cutout. Shouldn't see any stress concentrators there. Out of curiosity, what grade steel are you using? Assume you're using 70ksi welding wire?
