MOD: Baja Rack - Roof Rack

[Trail X]

Well I took the plunge and decided to get a roof rack. I thought especially with TECORE coming up, I could use some extra storage. I also wanted to be able to transport some fuel... since I couldn't add that on my tire carrier, I decided a roof rack would be the best bet.

So I took a look at all the options available. I wanted something that wouldn't affect gas mileage too much, wasn't too heavy, yet was strong enough to handle a big load.

What I found was the Baja Rack.



I believe I have the first on a TB. So I figured I'd write up a short review.

It's a fully welded hollow carbon-steel tube construction. So it's light and will not rattle. Plus, the rack is powdercoated, and not painted, which should give it some added durability. I picked mine up from Sierra Expeditions (http://www.sierraexpeditions.com/).



Baja Rack offers two sizes (http://www.bajarack.com/products.html). The Mule, which I got, and the MegaMule, which I felt was just a bit too big for the TB.

The rear has two tabs for rear facing lights. I'll stick some lights in there eventually. I'm still looking for some small wide angle flood lights... any suggestions?



The front faring is also aluminum, and not a plastic sheet.





I used the stock crossbars for the rack, which actually worked very well with the Baja Rack mounting system.



Here are my Wedco gas cans in place, just so you get an idea. If any of you are wanting gas cans, the Wedco supply is running out... pick up some of the last ones at https://www.expeditionexchange.com/wedco/.



I'm also hoping to get a bike rack mounted up there. Although, I'm still unsure how that will all work out.

As always, I appreciate the feedback!

[Trail X]

They sell a spare tire accessory, awning brackets (not pictured below), hi-lift holder, light tabs, and shovel/ax holders.



However... one accessory that they don't sell is a bike rack... (how did you like that segue, eh?)

So, I fashioned one up for about $35 using a DeltaCycle Bike Hitch (below), some U bolts, and some rubber strips. Very simple.

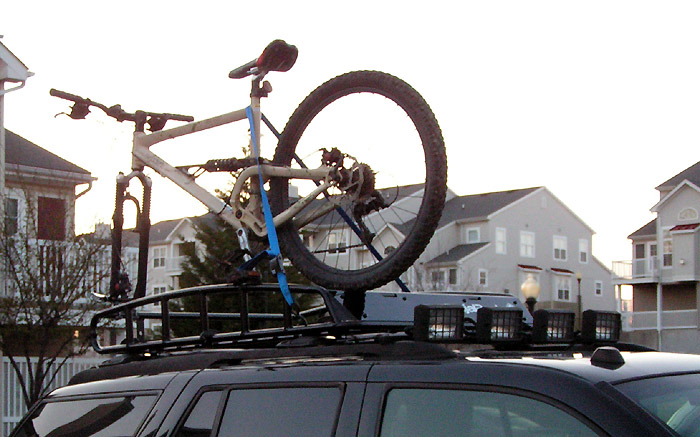

The result:






I'll probably play around with it's location a bit, but once I'm happy with a location, I may end up bolting it through the crossbar. I guess I'll see how this holds up for now.

[Trail X]

I reversed my prior approach taken with the lightbar with the rack mounts. Instead of a nut attached to the plate, I used a carrier bolt in a modified square washer with a square hole. This prevents the carrier bolt from spinning when tightening, and is much stronger than gluing on a nut (referencing my lightbar design).

The rubber material is a high grade plumbing rubber. When clamped, the rubber compound sees an extreme normal force acting on it. Because of the rubber's qualities, it provides maximum friction between the rack load bar and the truck's rack.



The load bars are 1"x1" aluminum extrusions. The rack is held by a 1" pipe clamp. Again, you can see the rubber compound is used between the rack and the load bar. This will prevent any movement between the rack and the load bar due to the large normal force caused by the pipe clamp.



By the time I installed it on the truck, I was working by streetlamp light. So no pictures. Very little visual difference though (the rack may be 3/4" lower), but the rigidity of the rack has improved 10-fold. No relative movement exists between the rack and the truck when I shake the rack as hard as I can. With the stock load bars, there was a lot of movement.

So, I'm pleased with this mod of my mod...

[Trail X]

I considered purchasing the Bajarack shovel and ax mount:



However, after chatting with Ho at Expedition Exchange, he convinced me that the system was way too complex. Upon closer inspection, I realized just how right he was. There are little washers, little wingnuts, and even mini retaining clips... all just waiting to be lost on the trail.

Ho steered me towards the quickfist:

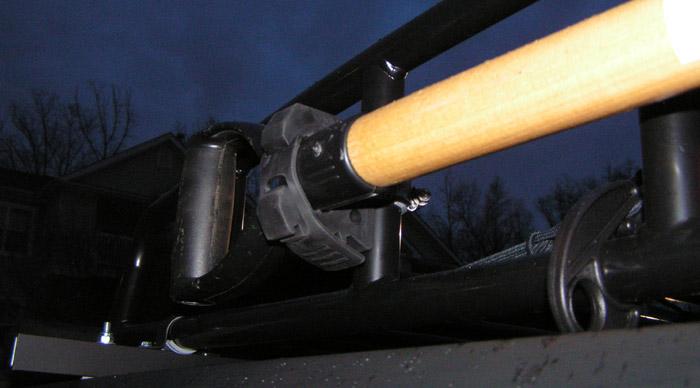

No extra hardware needed. Just tighten the rubber strap onto itself, and presto! Mounting the fists themselves was simple too. All I used was a pipe clamp and some small rubber pieces as backers.



This last photo also shows a closeup of the rack as installed on the rails.

[Trail X]

Well, lets add this to the list of rack modifications. Bridging ladders:


I used some hardware originally meant to mount a shovel and axe. Since I used the quick fists for the shovel, I no longer had a real use for the brackets. Luckily by changing the main bolt to a longer bolt, I was able to adapt them to hold my bridging ladders.


I used a combination of two washers (one big, one small), a rubber stopper (with a hole drilled in it), and a wing nut:



The bridges mount in 6 points. It mounts on the two bolts, the two load bars for the rack, and the top of the brackets (points labeled red):



Of course, you've got to test it out. Lots of popping and snapping sounds, as Roadie said in the prior thread (http://forums.trailvoy.com/showthread.php?t=44314), but they seemed to pop back fine!



On a trail:

[Trail X]

I just got confirmation that Sergio over at BajaRack is going to send me one of these to evaluate (and show off) during TECORE:





Woohoo!

The biggest question is... will it require any modification to fit my Wedco cans? The cans pictured above are Blitz cans.

This product should also work for any other rack that has slats... not sure if there are any limitations.

The big benefit of these holders is that when the upper bracket is removed, all that remains is a low profile baseplate:

[Trail X]

It came in today! Just in time for TECORE. I'll be evaluating the holder during the event and providing product input back to BajaRack.

So guys at TECORE... take a look when you're out there.

For anyone with a rack with rod-slats, it should fit. I'll report back with my findings after the weekend.

[The Roadie]

The footlocker in the back looks familiar.

[teebes]

Is that a wingnut on the top holder? Is there a locking mechanism by any chance?

Careful of the scoundrels out there.
thieves

[Trail X]

The footlocker in the back looks familiar.

Cheap ol' walmart crap... but it's held up fine so far. No point paying for a pelican case yet. Although, not ruling it out down the road...

Is that a wingnut on the top holder? Is there a locking mechanism by any chance?

Careful of the scoundrels out there.
thieves

Yeah, its a single wingnut holding the top on. There is a hole in the stud that you can insert a retaining clip in. As an alternative, you can put in a small lock. Although, I only carry these around on long trips. So I'm not too worried as of now.

[Philberto]

That jerry can holder looks nice! I think Expedition Exchange is out of the 5gal wedcos though, so I'm stuck with those crappy CARB ones, unless I drive to Arizona and pick some up Still waiting on somebody to get a RTT and mount it on their roof so I can see how I'll do it myself, and unfortunately BajaRack's EXP rack is just too expensive for me to use that. Anything similar out there?

[bgwolfpack]

What do you carry in the tote boxes? How much weight? (I've parsed this question in other threads and never gotten anyone to bite.) 'The manual says no loading of the luggage carrier beyond 220 lbs.' Is that the limit to stay under? My plans will be to use a Mega Mule, so I need help in determining if this idea is over kill or not, depending on the weight. Any insight?

[Trail X]

The smaller, front case is my field kitchen case. It houses the grill, coleman propane tanks, regulator, small pots, & stove utensils. This case smells like a grill... so I prefer to keep it on the roof, as oppose to inside. (although, I put it inside the vehicle at night... which is debatable weather it's a good or bad idea...)

The larger case in the rear houses "camp" supplies. Its got stuff like my reciprocating saw, lantern, bugspray, emergency cold weather gear, flashlights, tent ceiling fan, tarps, paper towels, TP, etc etc... When I set up camp, I generally set this beside my tent.

No way you'd want more than 200 lbs up there while on a trail. The rocking of the vehicle is greatly exacerbated by the lever arm of this weight to the roll center of the vehicle. Things tend to loosen a bit over time... However, if you had a roof top tent up there that was under 200 lbs, and only were in it when the vehicle wasn't rocking, you'd probably be ok.

[Trail X]

Kinda cool, my truck made it to the BajaRack website:

http://www.bajarack.com/the-mule/

[OregTrailBlazin]

Kinda cool, my truck made it to the BajaRack website:

http://www.bajarack.com/the-mule/

That's funny.. Just last week my co-worker came to me talking about this bitch'n trailblazer on the BajaRack sight. And how I just had to see it.. hehehe... I was able to show him a bunch more of your photo's..

Congrats!! Now send some pics in to readers ride!.. I bet one of the mag's would do a write up on the TB/EV since it hasn't been covered much yet!

[Trail X]

The baja rack is entering a previously unanticipated phase 2...

I'm working on a plan to mount the front half of the baja rack to the front of the cab. This should help shoot the wind over top of the roof tent, plus add a little space for carrying things like firewood. The challenge being that the roof rack rails do not stretch that far forward.

I just threw it into place to get an idea of what I was working with. It looks like I will be cutting it right behind the 3rd vertical support bars:



I'm considering using the front-most stock roof rack mounting bolts to mount the rear of the baja. For the front, I think I may need to be a bit more creative. I've got two ideas floating around in my head and both require drilling into the roof.

The first idea is a blind rivet nut.

The second idea is a short bolt sticking out from inside, and a coupling nut tightened down on top of that.

(Of course, both ideas require smothering the hole with RTV.)

Any input from anyone? For some reason the non-serviceability of the rivet nuts worries me.

[bartonmd]

We use the blind rivet-nuts on stuff at work all the time... They are good to go...

Mike

[The Roadie]

A couple of my OEM rivnuts started spinning when I removed the rails for the 4th time, so I sort of dimpled them into not spinning when I put on my industrial channel material. I never want to take that stuff off now. You might consider a couple short lengths of unistrut.

[Trail X]

We use the blind rivet-nuts on stuff at work all the time... They are good to go...

Mike

My only worry is getting them tight enough. I won't be using a rivet nut tool, just a jerry-rigged nut and bolt system. I've used that before on a broken-side rivet nut, but I worry about being able to generate enough force on the unbroken/sealed side rivnuts.

A couple of my OEM rivnuts started spinning when I removed the rails for the 4th time, so I sort of dimpled them into not spinning when I put on my industrial channel material. I never want to take that stuff off now. You might consider a couple short lengths of unistrut.

That was one of my worries about using rivet nuts. The ones I was looking at are slightly splined to supposedly prevent spin. Unistrut might work, but I'm not convinced I need the mounting flexibiltiy it would offer. Plus, the roof is pretty curved on the front... not sure if it would contour properly...?

[MrSmithsTB]

If you were to use the shallow(7/8") strut, you could get it to curve to the roofline. It's still stout, far more than our stock channels, but gives just enough flexibility. I was going to suggest this, but Bill beat me to it. It would also keep everything closer to the roof itself, help aid in wind deflection.
